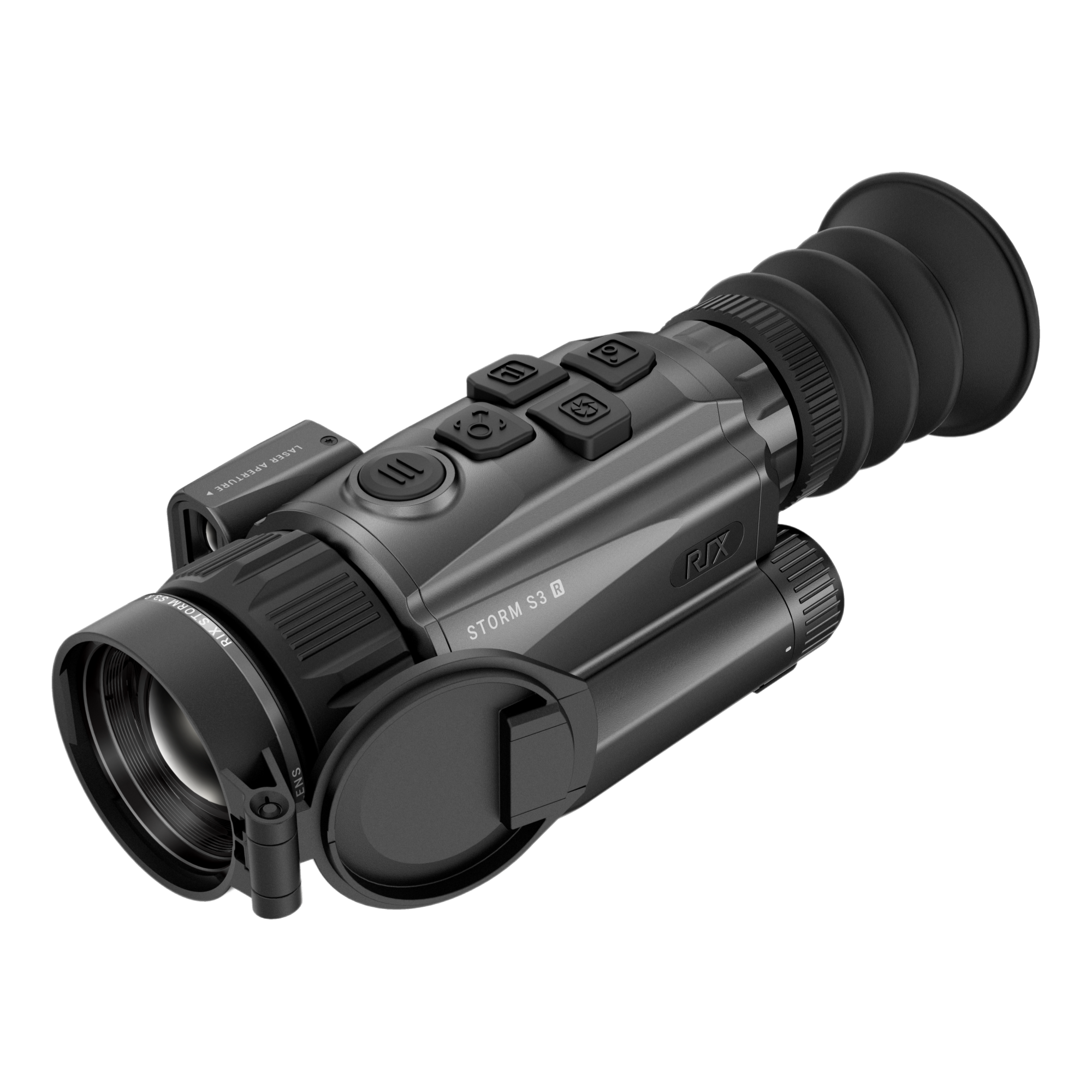

STORM S3R Thermal Imaging Riflescope
Compact thermal scope series with optional LRF and sensors.
CHOOSE A MODEL
Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
NETD
Built-in lRF
Detection Range
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
WHY CHOOSE STORM S3R
STORM S3R
S3R is built for mobility and precision in demanding conditions. Featuring a 384×288 thermal sensor with a 35mm lens, it delivers detection up to 1800m, while the integrated laser rangefinder provides accurate ranging up to 1200m with ±1 meter precision. Weighing just 454g, it stays light for handheld use. The enlarged four-directional buttons ensure intuitive control, even with gloves, with direct UI mapping for clear feedback. A free QD mount enables quick rifle setup, while the built-in ballistic calculator improves long-range accuracy.
Lightweight. Lethal. Versatile.
Weighing 454g, the STORM series can be used as a handheld monocular or as a riflescope. The S3R adds a built-in rangefinder and ballistic calculator—for unmatched long-range precision.
Compact LRF with Free Ballistics
The S3R features an integrated laser rangefinder (1,200 m range, ±1 m accuracy) and a free ballistic calculator—delivering precise long-range performance without extra weight.
Precision Controls, Anywhere
Unlike standard scopes, the STORM lets you adjust the PiP magnification independently from the main view—so you can stay aware of your surroundings while zeroing in with precision.
Picture-in-Picture. Zoom Your Way.
Unlike standard scopes, the STORM lets you adjust the PiP magnification independently from the main view—so you can stay aware of your surroundings while zeroing in with precision.
Return to Center (RTC) Function
After zeroing, the RTC function will automatically reposition the reticle closer to the center of the x-axis and y-axis. If the deviation from the center position is minimal, it can even realign the reticle directly to the center, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target.
1000g Impact Resistance.Hunt Without Limits.
Tested to withstand 1000g recoil, the STORM stays rock solid on heavy-caliber rifles like .375 H&H or 12-gauge. No shifting, no damage—just consistent performance in the toughest conditions.
See What Others Miss
When visibility fades, STORM sharpens your edge. Its advanced 12µm sensor and vivid 1024 AMOLED screen cut through distortion with Sunny Mode, while Rain Mode heightens sensitivity in moisture-heavy air. From downpours to dense fog, STORM locks onto your target with unwavering clarity.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
384×288
Pixel Pitch
12μm
NETD
<25 mK
Frame Rate
50 Hz
Optical Specs
Objective Lens
35mm, F1.0
Base Magnification
3.5×
Field of View(H×V), degrees/m@100m
7.5°×5.7°/13.2×9.9m
Digital Zoom
1~ 4×
Eye Relief
48mm
Diopter Adjustment
-5D to +5D
Detection Range
1800m
Display Specs
Type
AMOLED
Resolution, pixels
1024×768
Laser Rangefinding
Measurement Range
1200m
Measurement Accuracy
±1m
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
454 g
Dimensions
151×83×61 mm
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type-C USB)
Max Recoil Power on Rifled Weapon (Eo)
Compatible Mounts
Picatinny Mount
Downloads
STORM User Manual
