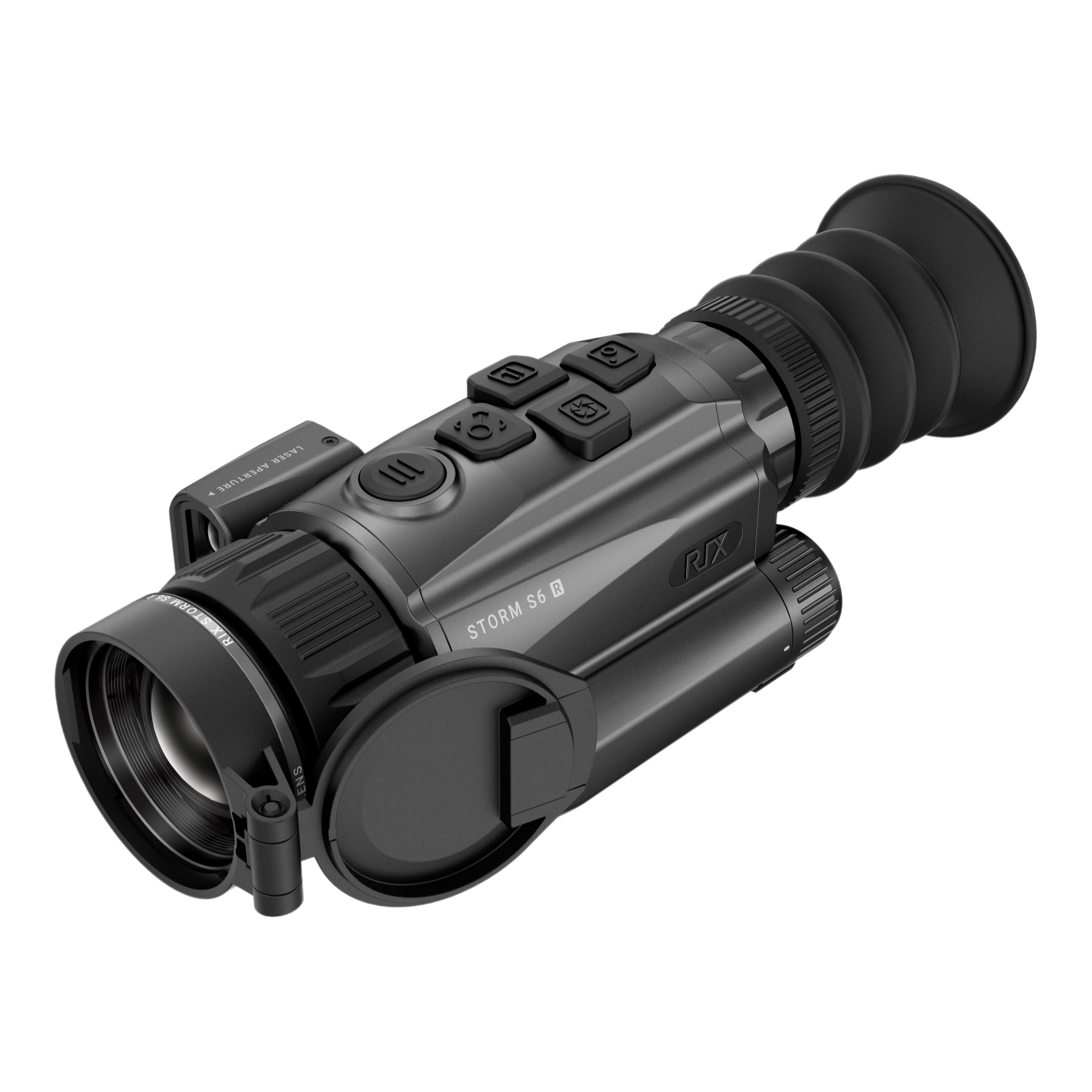

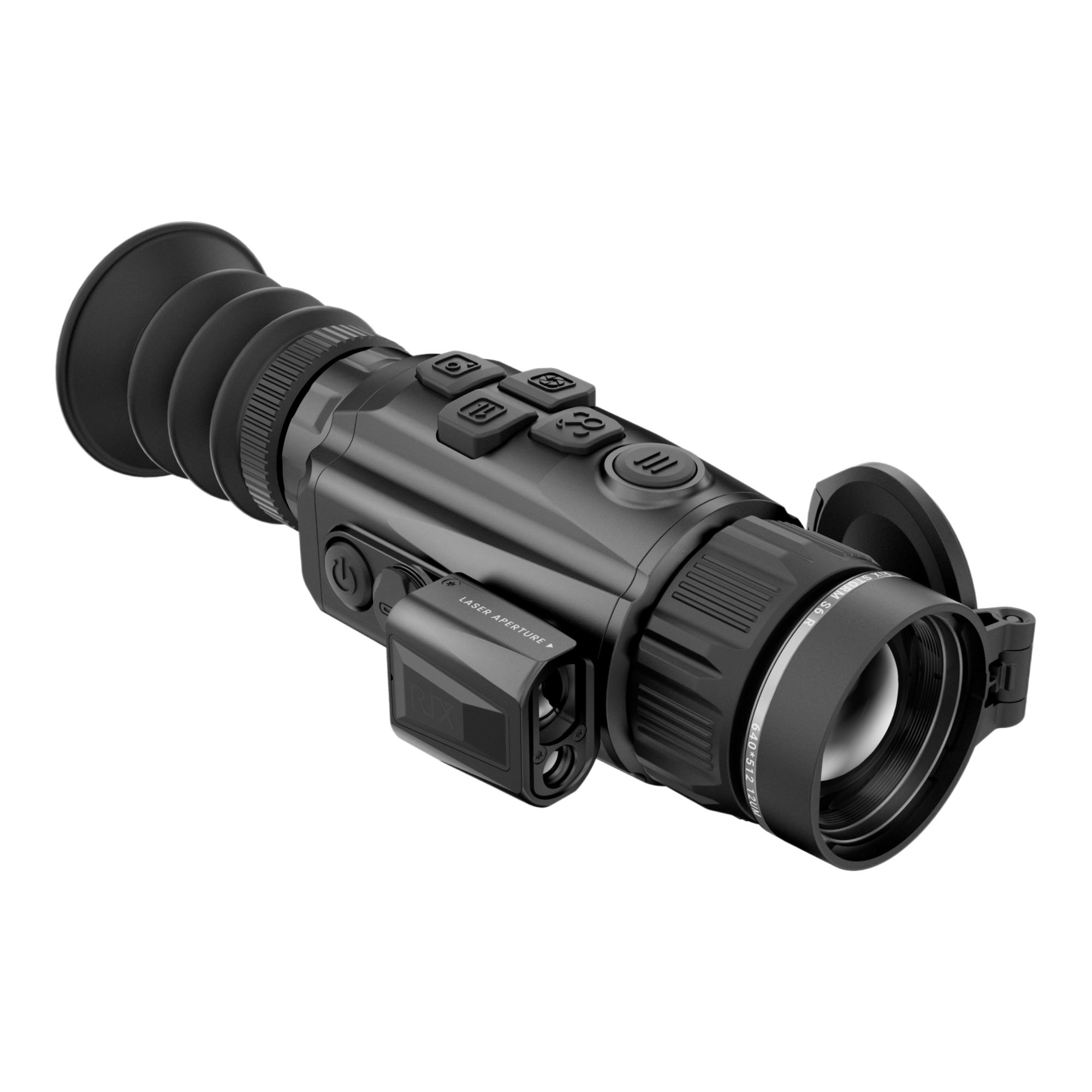

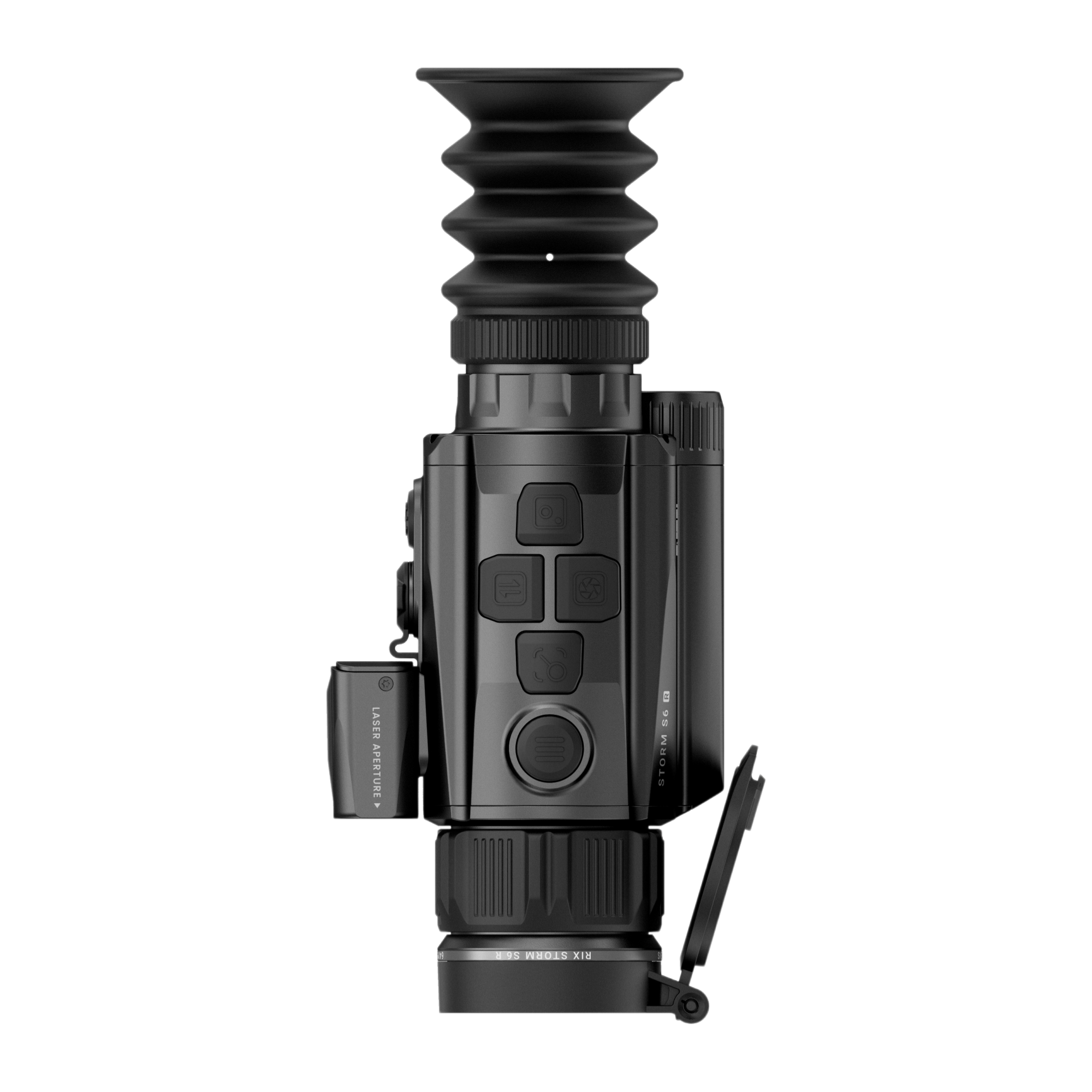

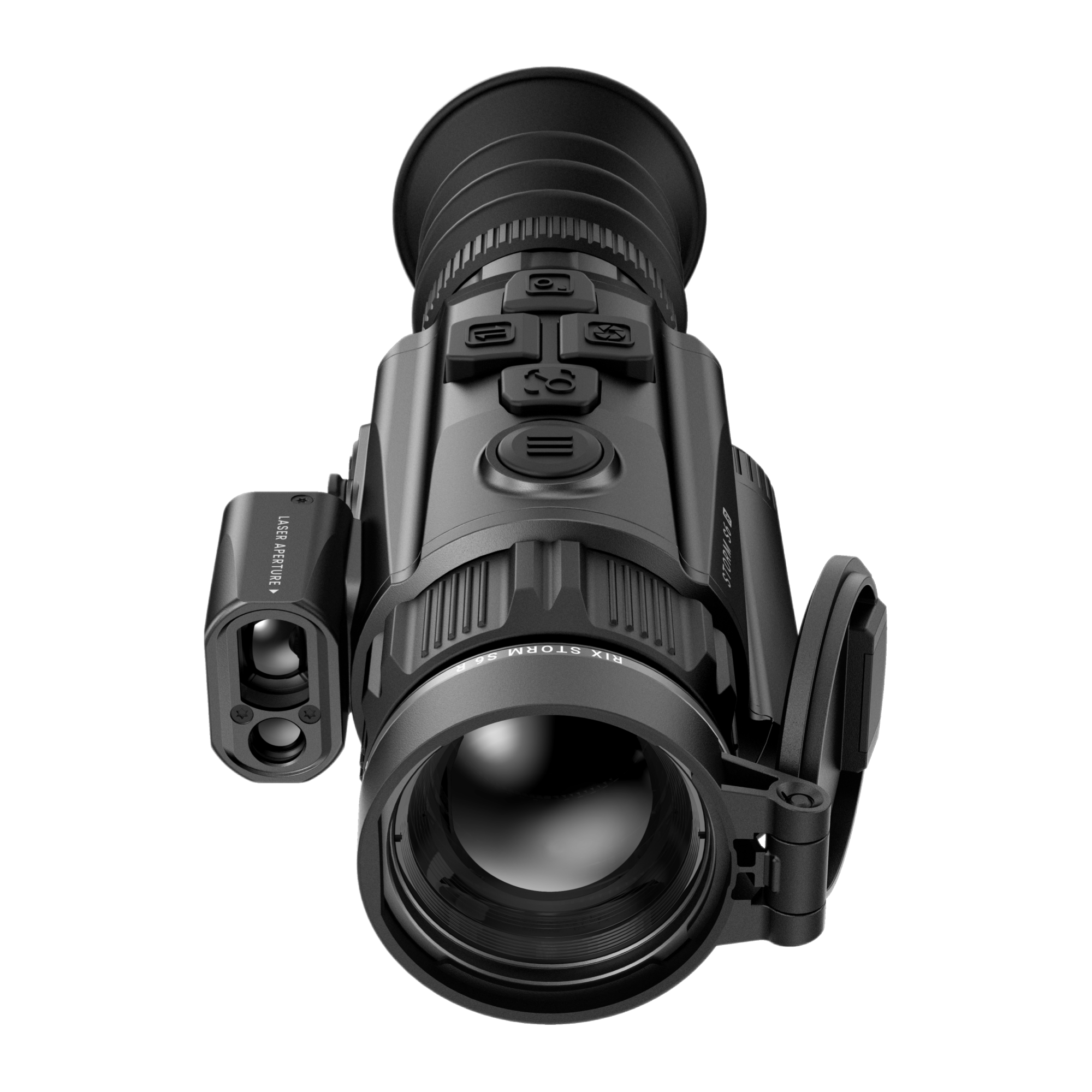

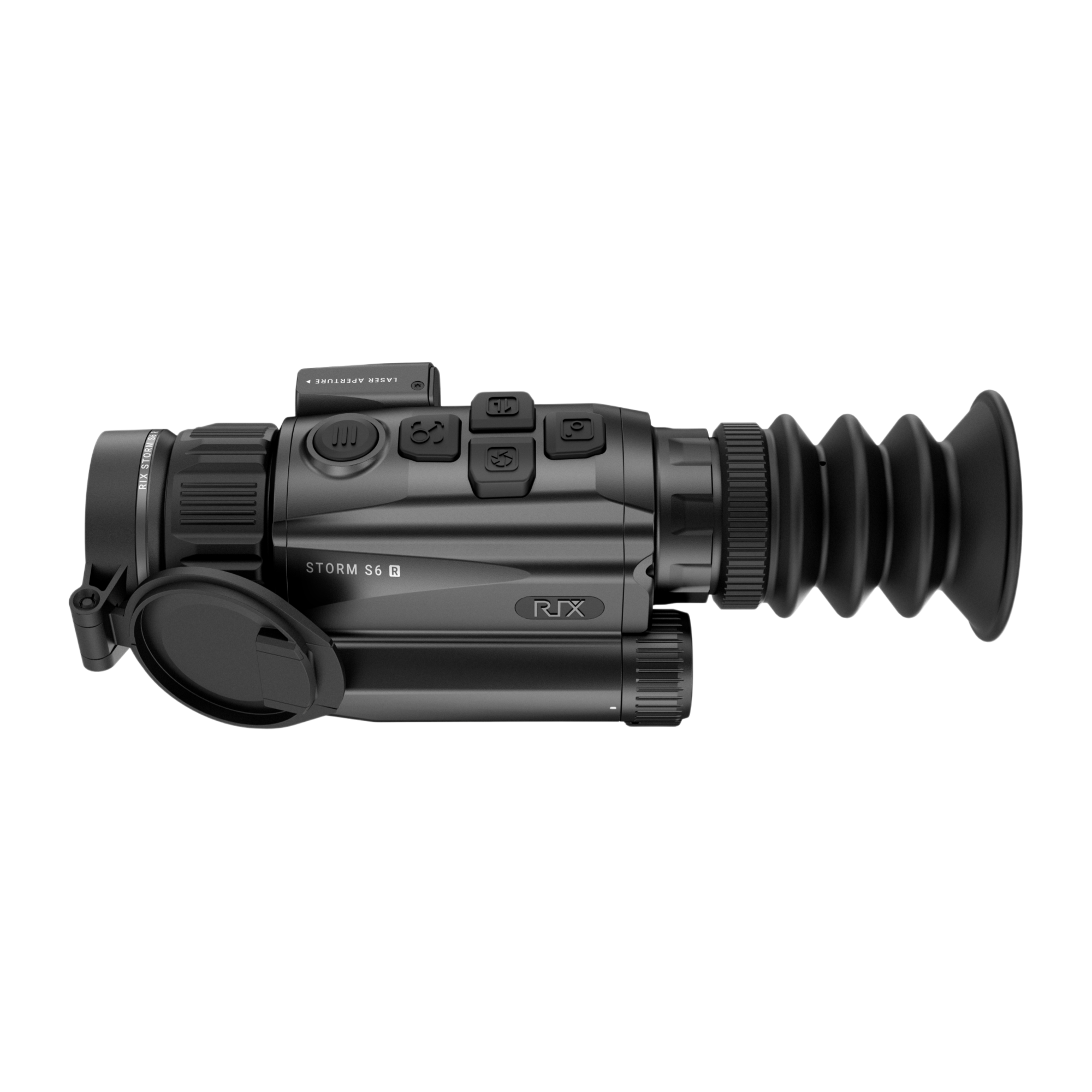

STORM S6R Thermal Imaging Riflescope
Compact thermal scope series with optional LRF and sensors.
CHOOSE A MODEL
Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
NETD
Detection Range
Built-in lRF
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
WHY CHOOSE STORM S6R
STORM S6R
S6R features an intuitive one-handed control system with directly mapped UI buttons, ensuring fast and precise operation even with gloves. Powered by a next-generation 640×512 thermal sensor with NETD <20mK, it delivers reduced noise and sharper detail for clearer imaging in challenging environments. A compact built-in laser rangefinder provides accurate distance measurement up to 1,312 yards, while maintaining a lightweight and streamlined design for field use.

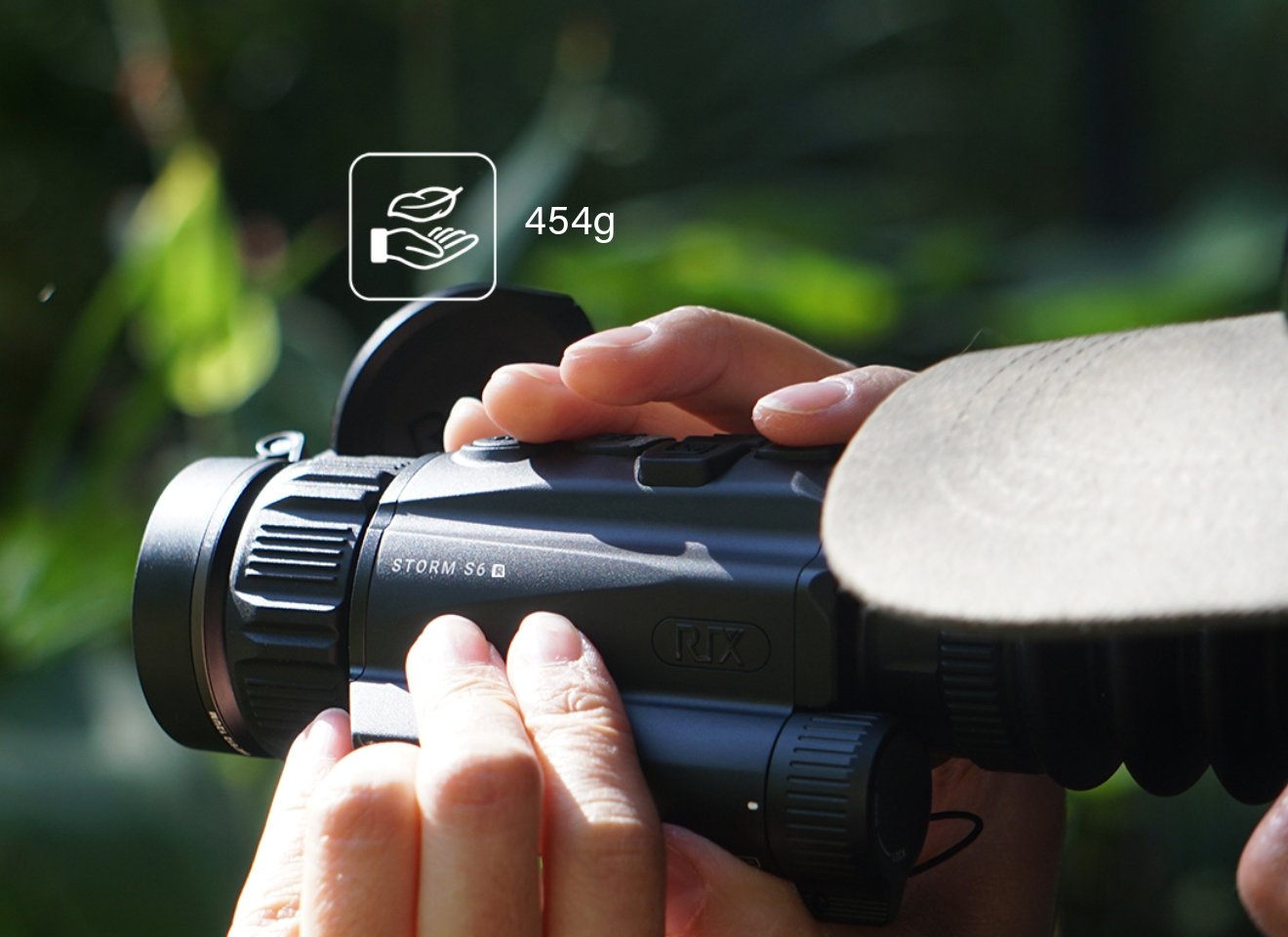

Lightweight. Lethal. Versatile.
Weighing 454g, the STORM series can be used as a handheld monocular or as a riflescope. The S6R adds a built-in rangefinder and ballistic calculator—for unmatched long-range precision.

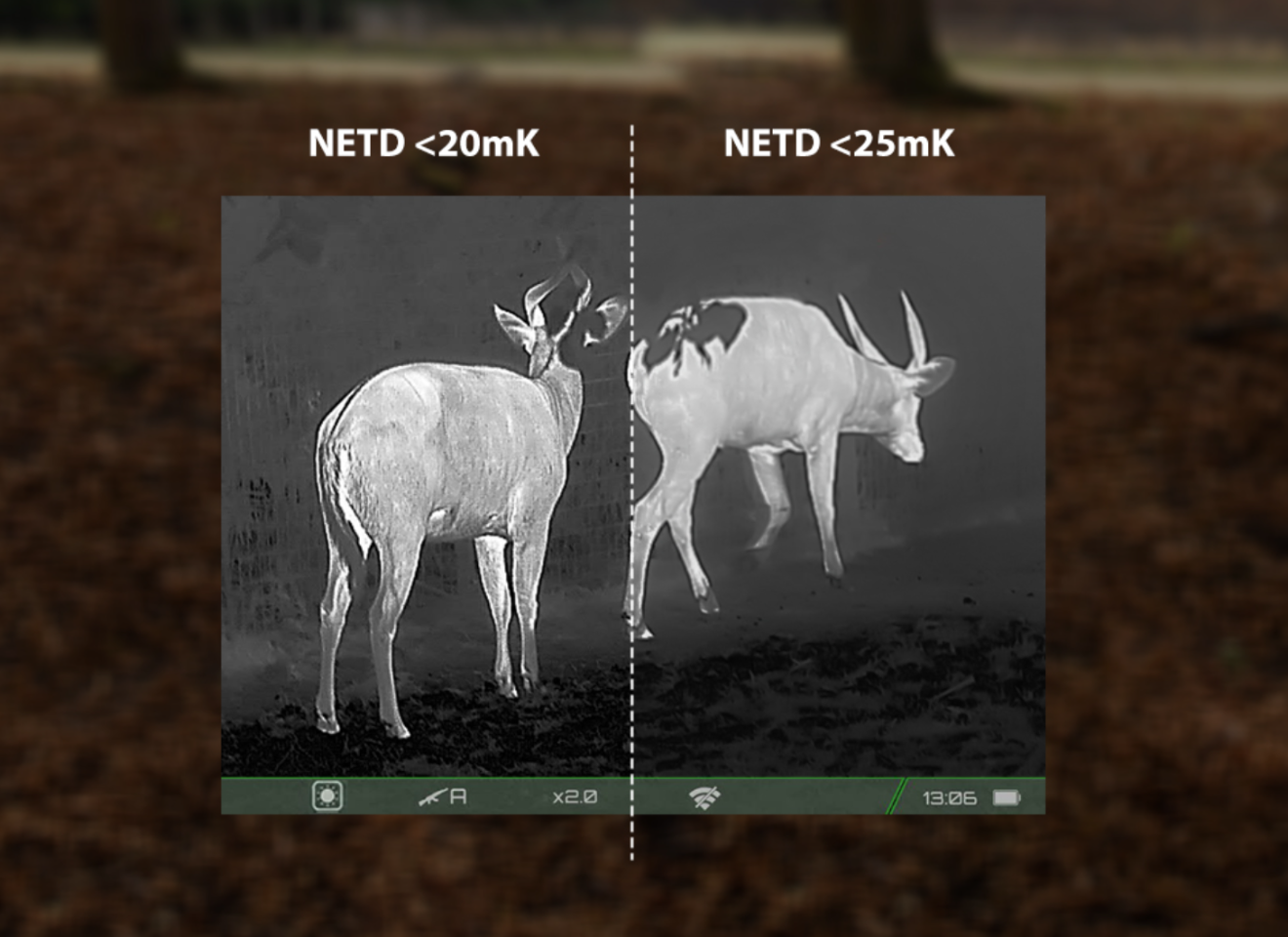

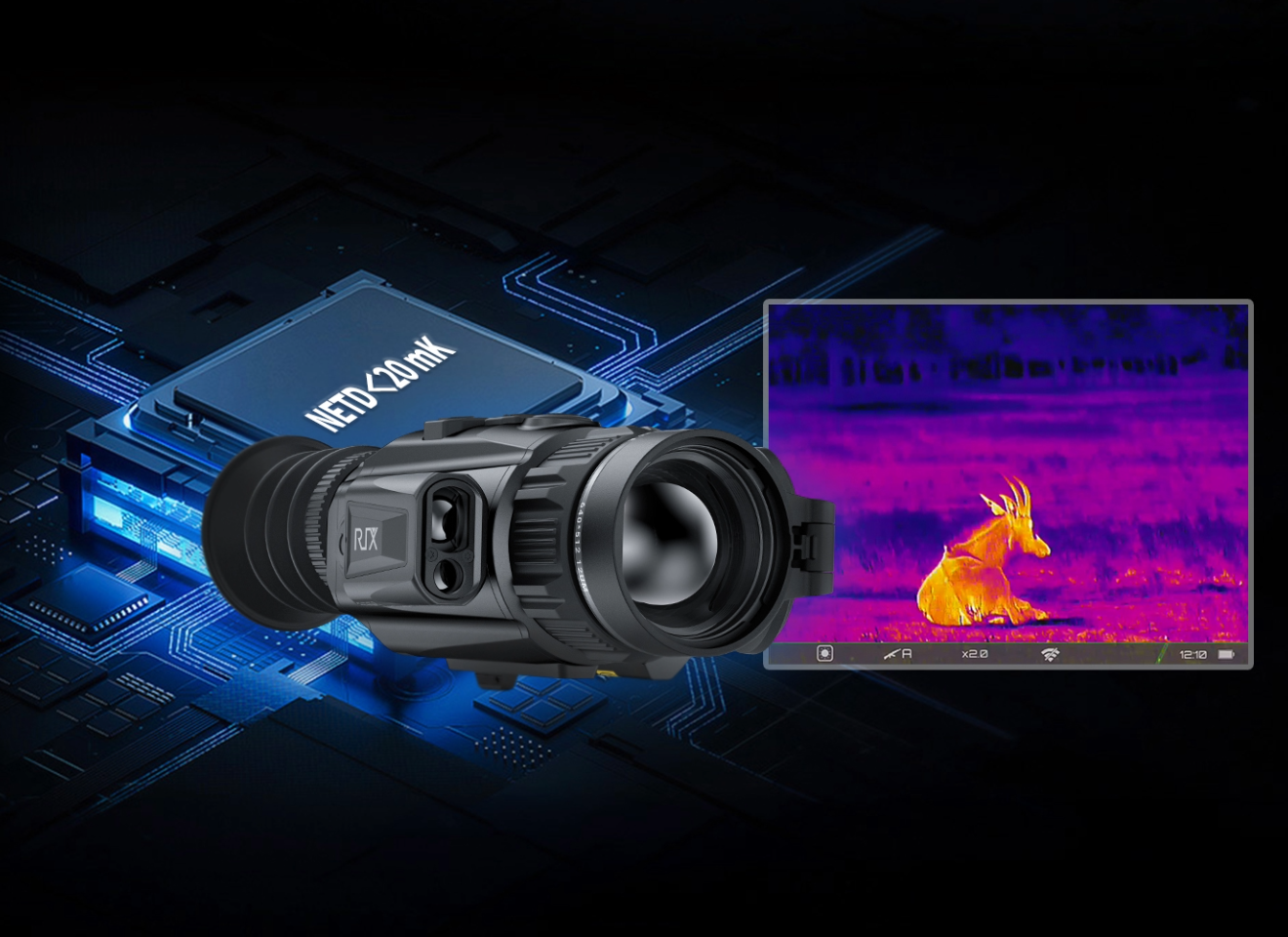

See the Heat. Sharper Than Ever.
Powered by a 640×512 thermal sensor and ultra-low NETD <20mK, the S6R delivers stunning clarity—even in fog, rain, or high humidity.

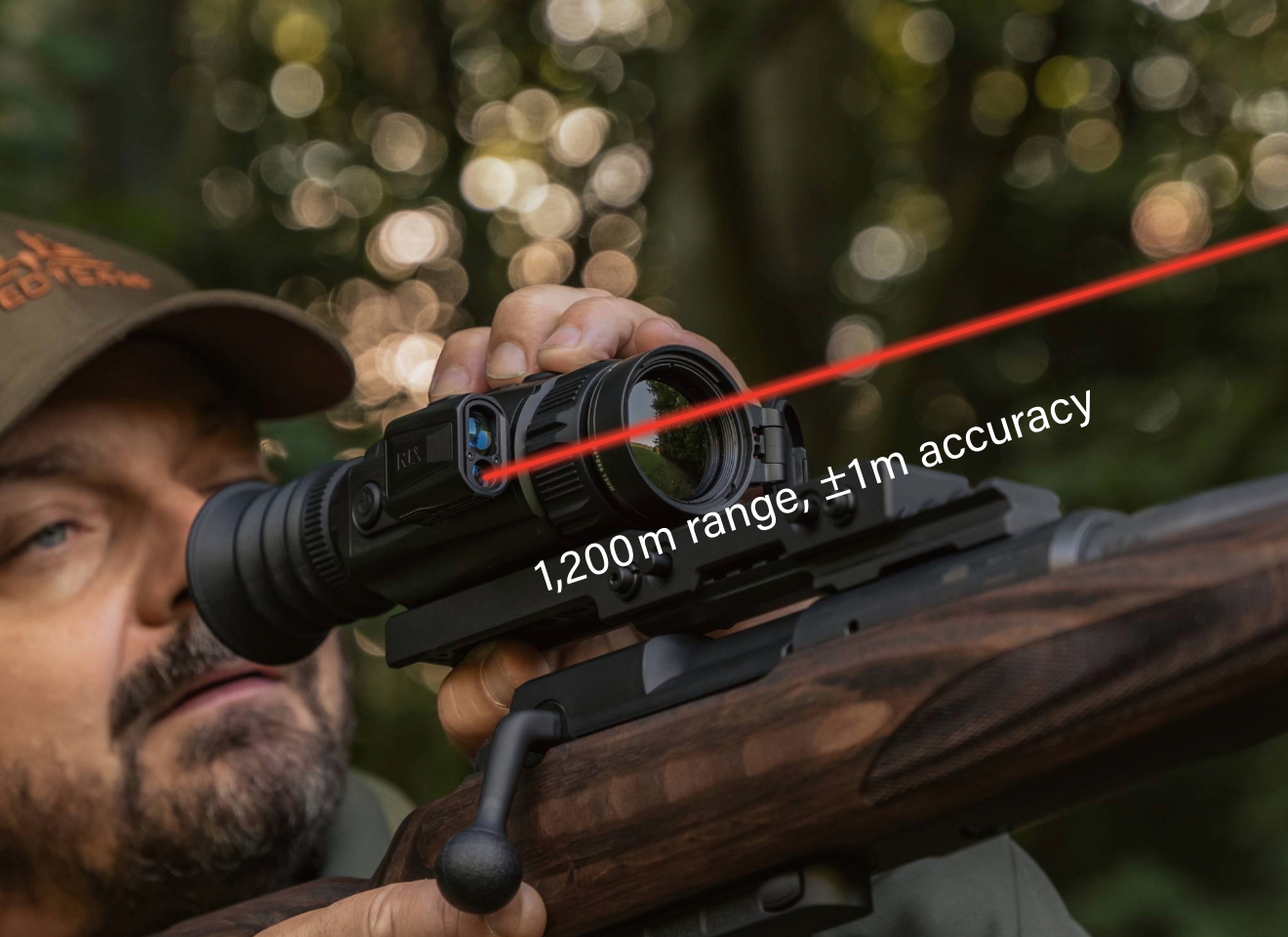

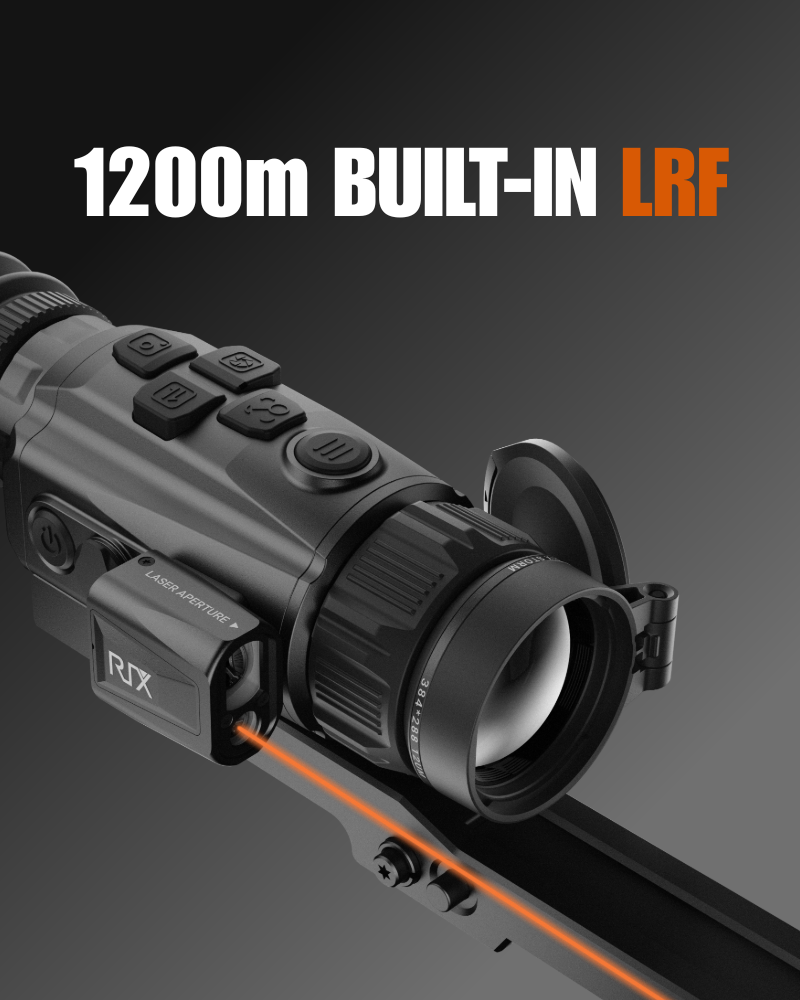

Compact LRF with Free Ballistics
The S6R features an integrated laser rangefinder (1,200 m range, ±1 m accuracy) and a free ballistic calculator—delivering precise long-range performance without extra weight.

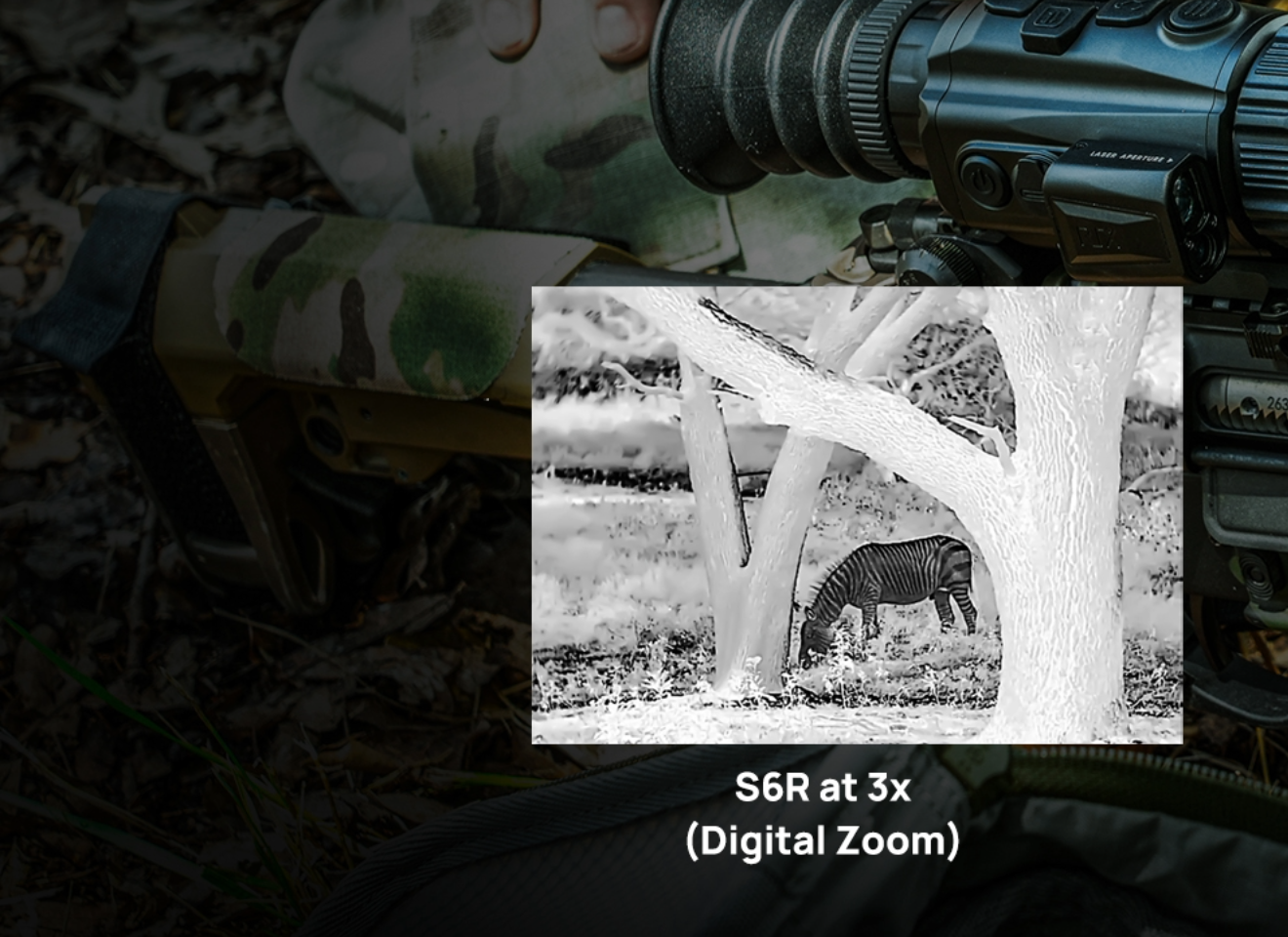

Master Every Range
The S6R starts with a 2x base magnification and supports up to 3x digital zoom. Compared to devices with a 384-resolution sensor, it delivers sharper images and a noticeably wider field of view—making it easier to detect targets at longer distances.

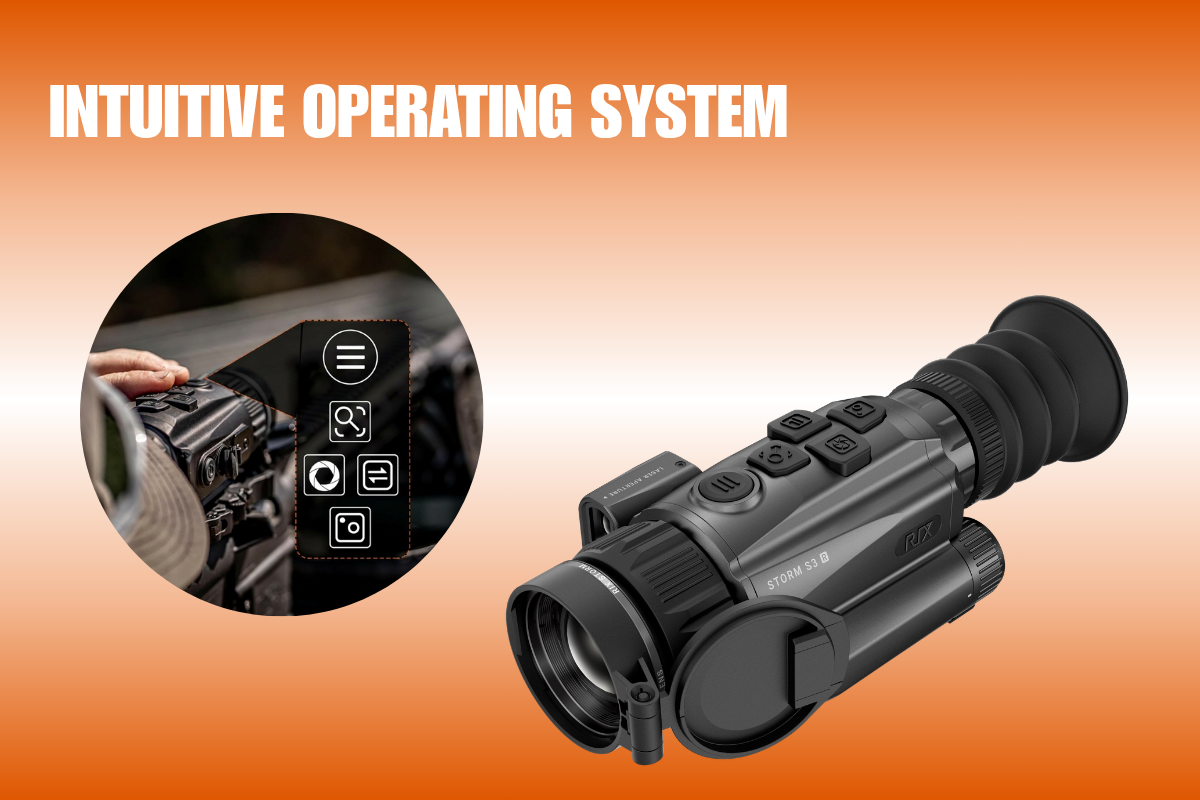

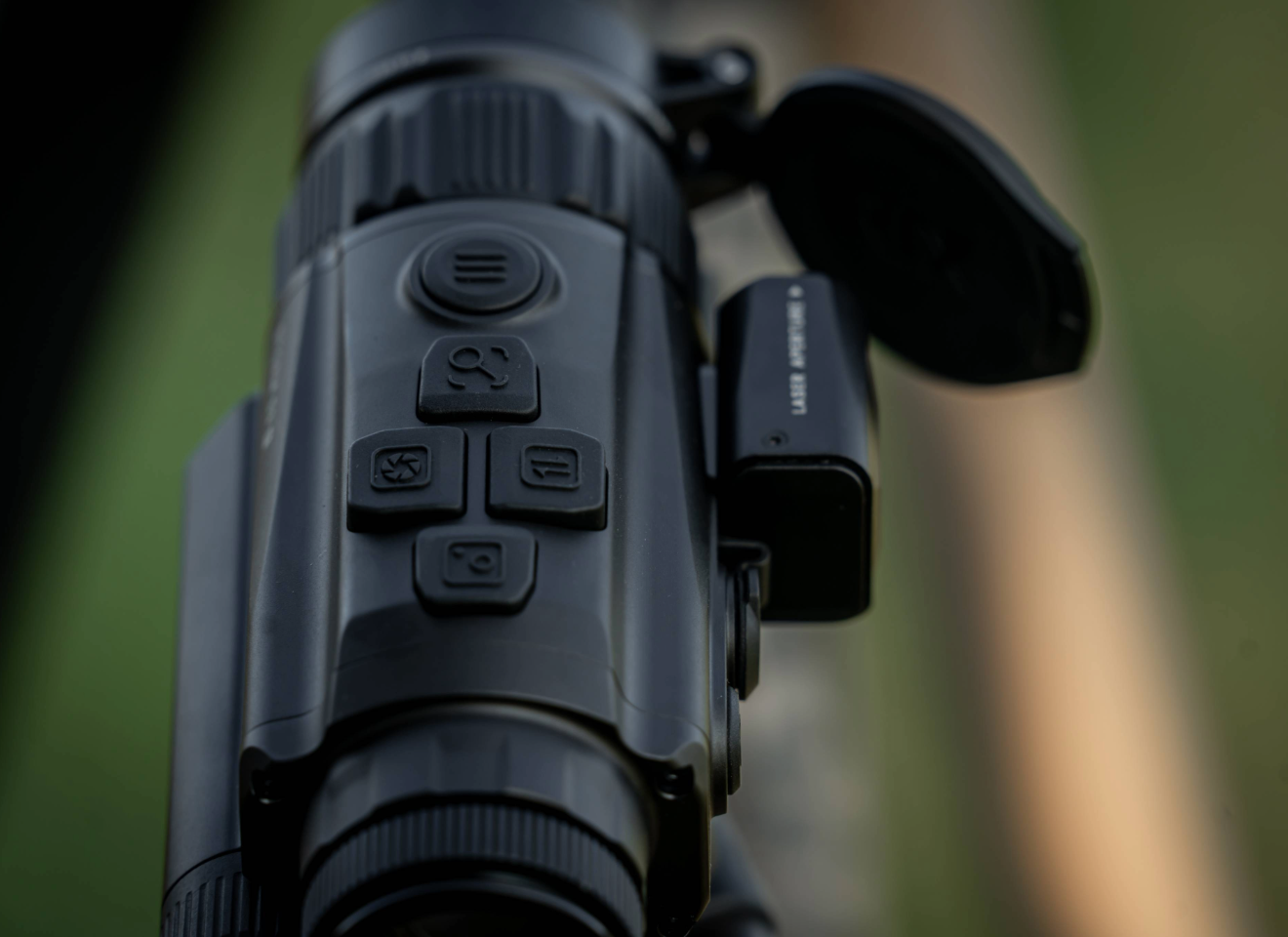

Precision Controls, Anywhere
Large directional buttons ensure quick, glove-friendly operation. And the uniquely designed directional pad offers effortless operation—even in complete darkness.

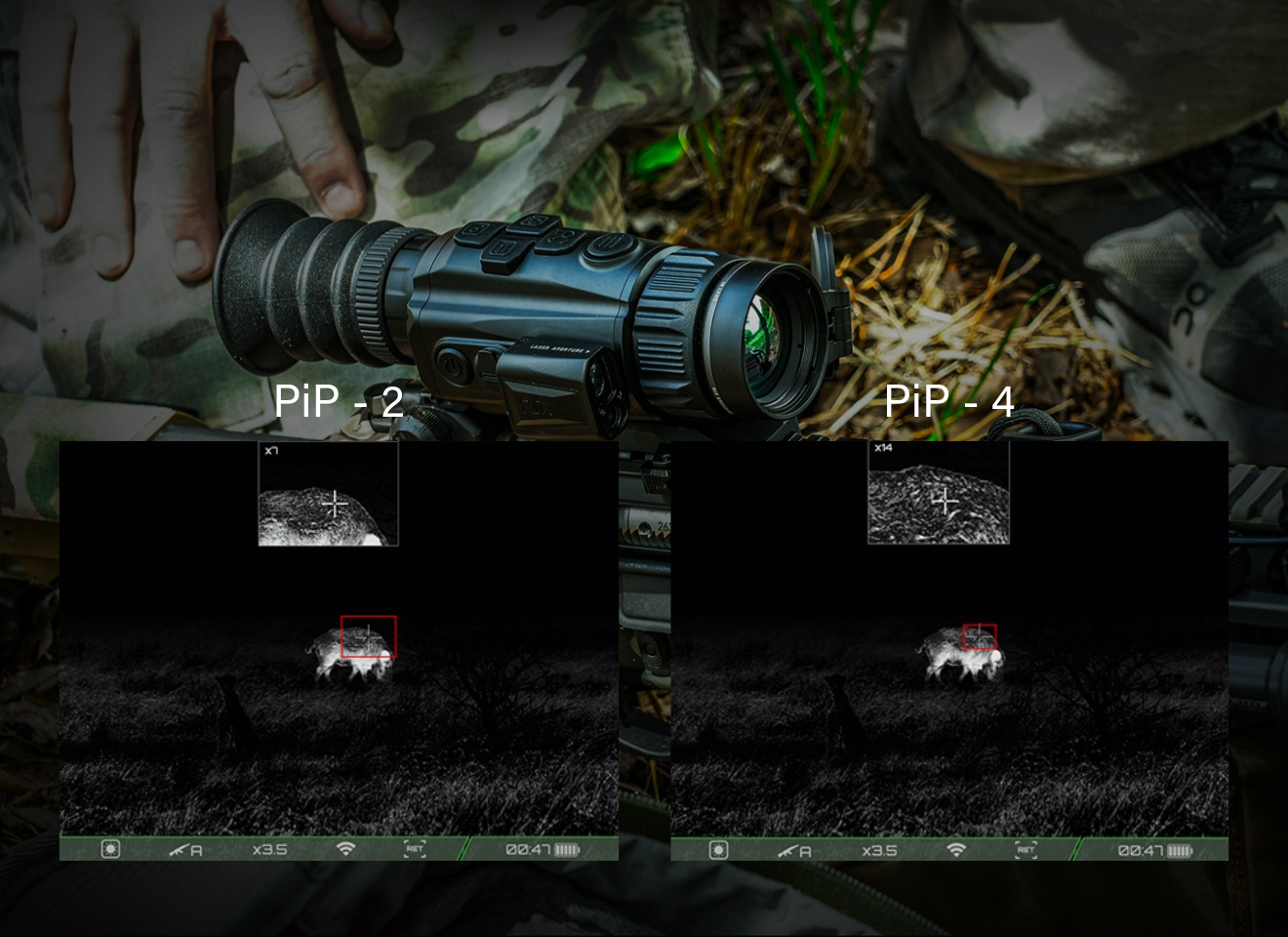

Picture-in-Picture. Zoom Your Way.
Unlike standard scopes, the STORM lets you adjust the PiP magnification independently from the main view—so you can stay aware of your surroundings while zeroing in with precision.

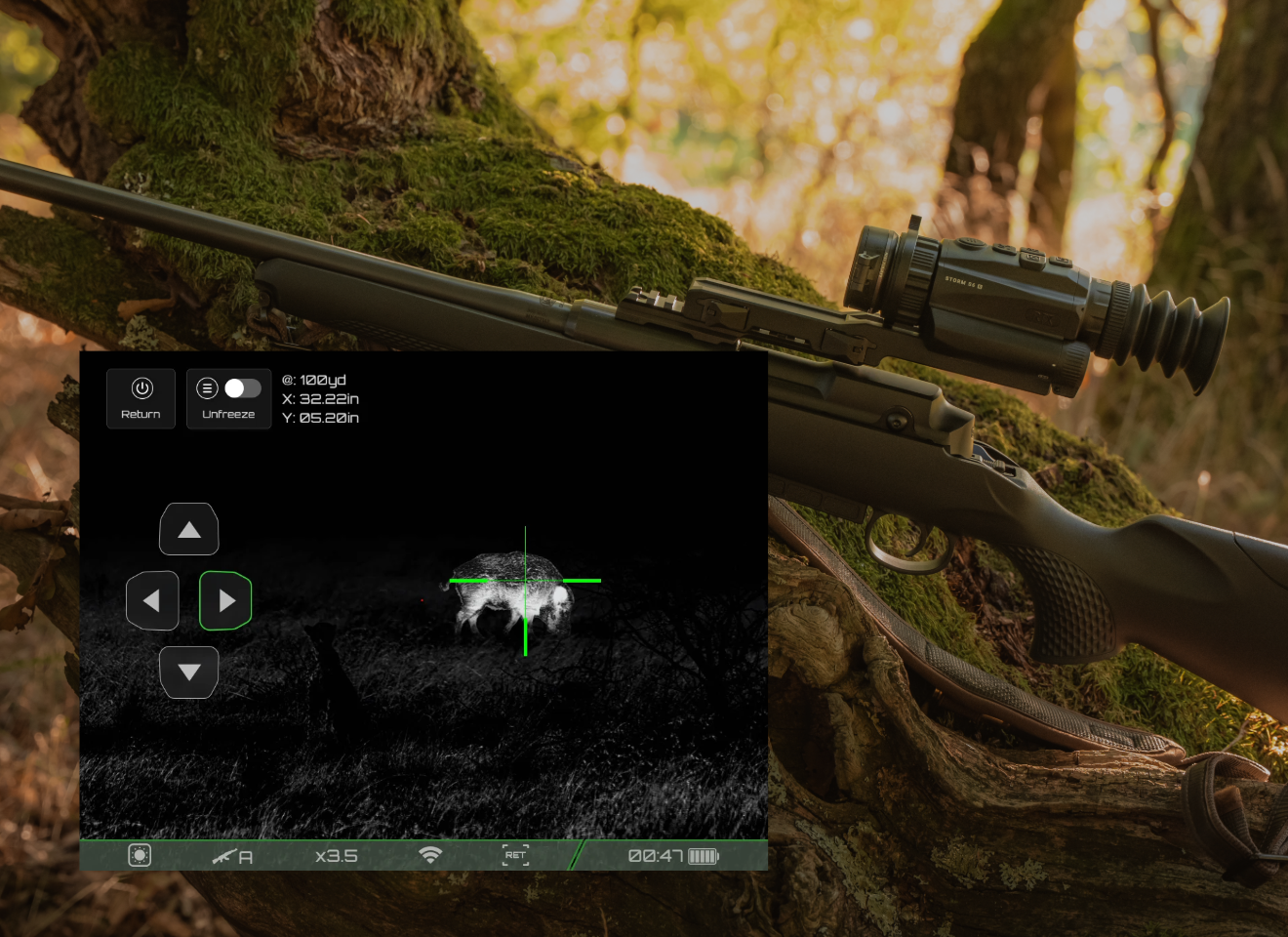

Return to Center (RTC) Function
After zeroing, the RTC function will automatically reposition the reticle closer to the center of the x-axis and y-axis. If the deviation from the center position is minimal, it can even realign the reticle directly to the center, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target.
1000g Impact Resistance.Hunt Without Limits.
Tested to withstand 1000g recoil, the STORM stays rock solid on heavy-caliber rifles like .375 H&H or 12-gauge. No shifting, no damage—just consistent performance in the toughest conditions.
See What Others Miss
When visibility fades, STORM sharpens your edge. Its advanced 12µm sensor and vivid 1024 AMOLED screen cut through distortion with Sunny Mode, while Rain Mode heightens sensitivity in moisture-heavy air. From downpours to dense fog, STORM locks onto your target with unwavering clarity.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
640×512
Pixel Pitch
12μm
NETD
<20 mK
Frame Rate
50 Hz
Optical Specs
Objective Lens
35mm, F1.0
Base Magnification
2×
Field of View(H×V), degrees/m@100m
12.5°×9.4°/21.9×17.6m
Digital Zoom
1~ 4×
Eye Relief
48mm
Diopter Adjustment
-5D to +5D
Detection Range
1800m
Display Specs
Type
AMOLED
Resolution, pixels
1024×768
Laser Rangefinding
Measurement Range
1200m
Measurement Accuracy
±1m
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
454 g
Dimensions
151×83×61 mm
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type-C USB)
Max Recoil Power on Rifled Weapon (Eo)
1000g / 6000J
Compatible Mounts
Picatinny Mount
Downloads
STORM User Manual
