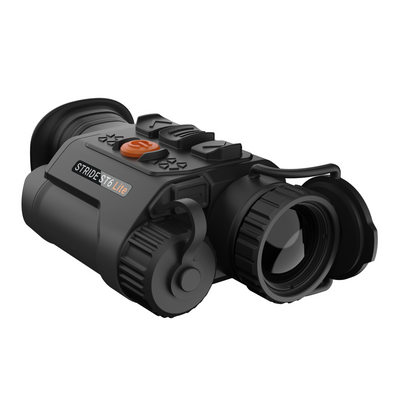

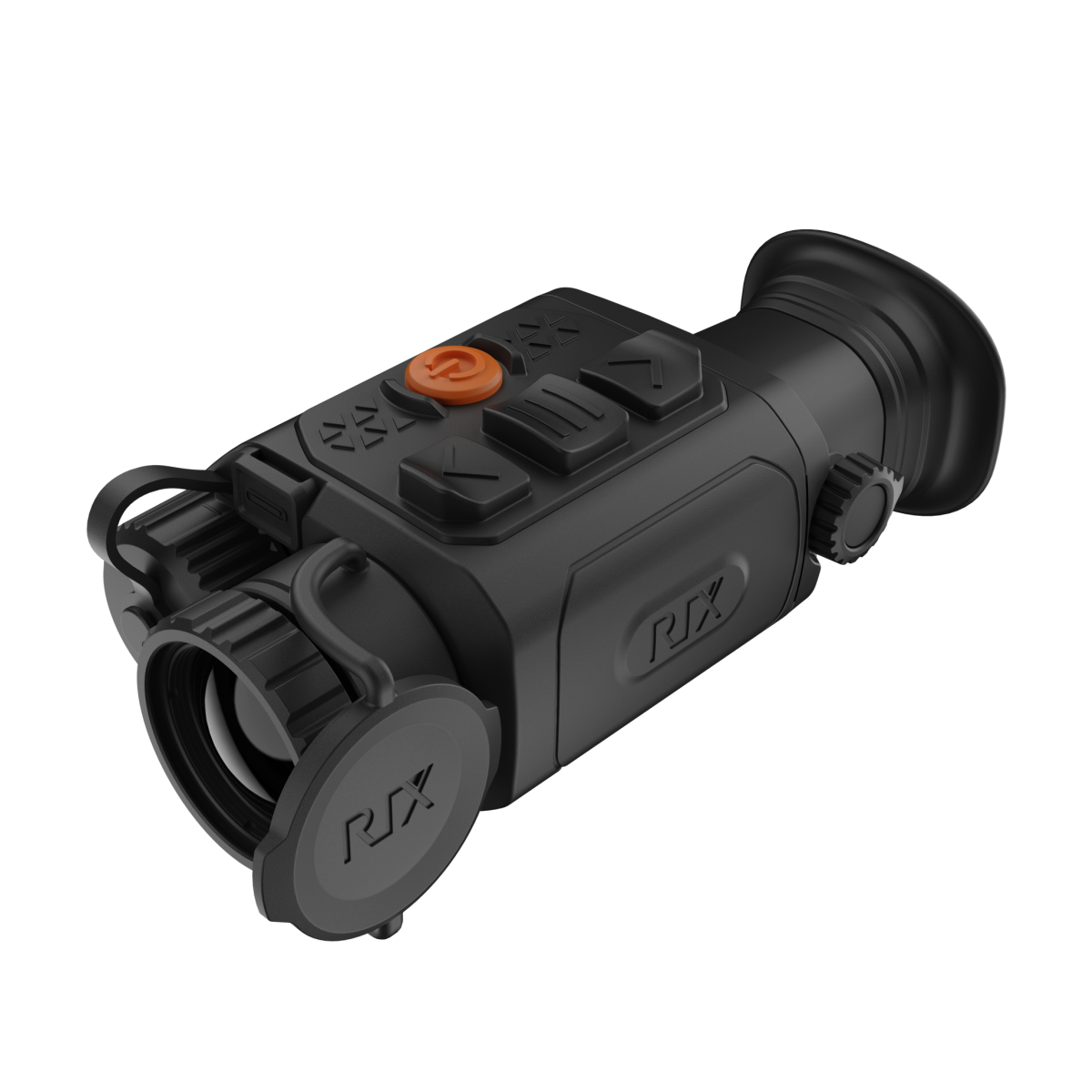

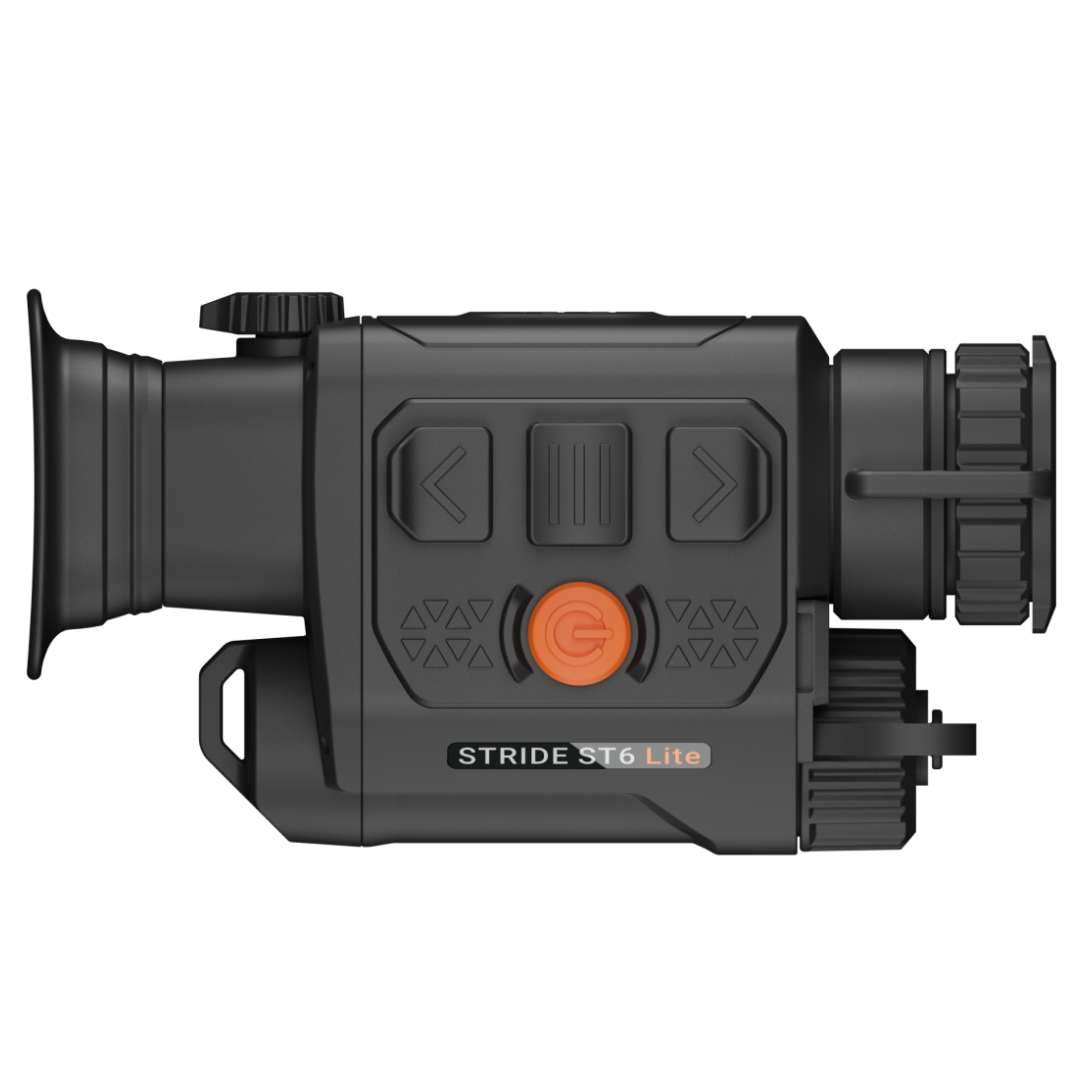

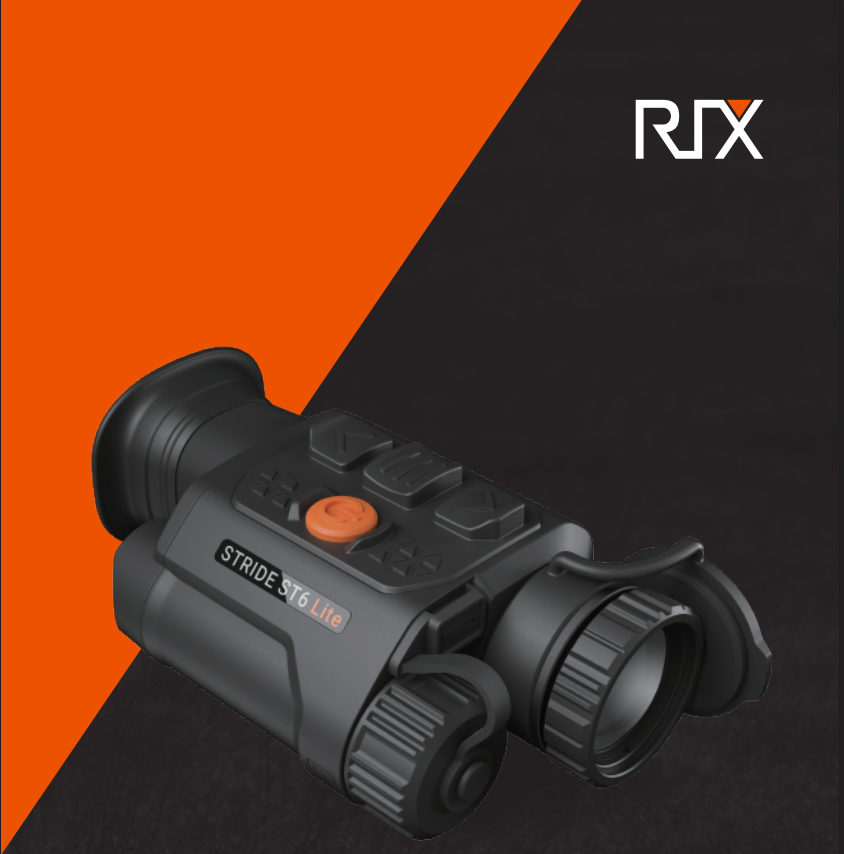

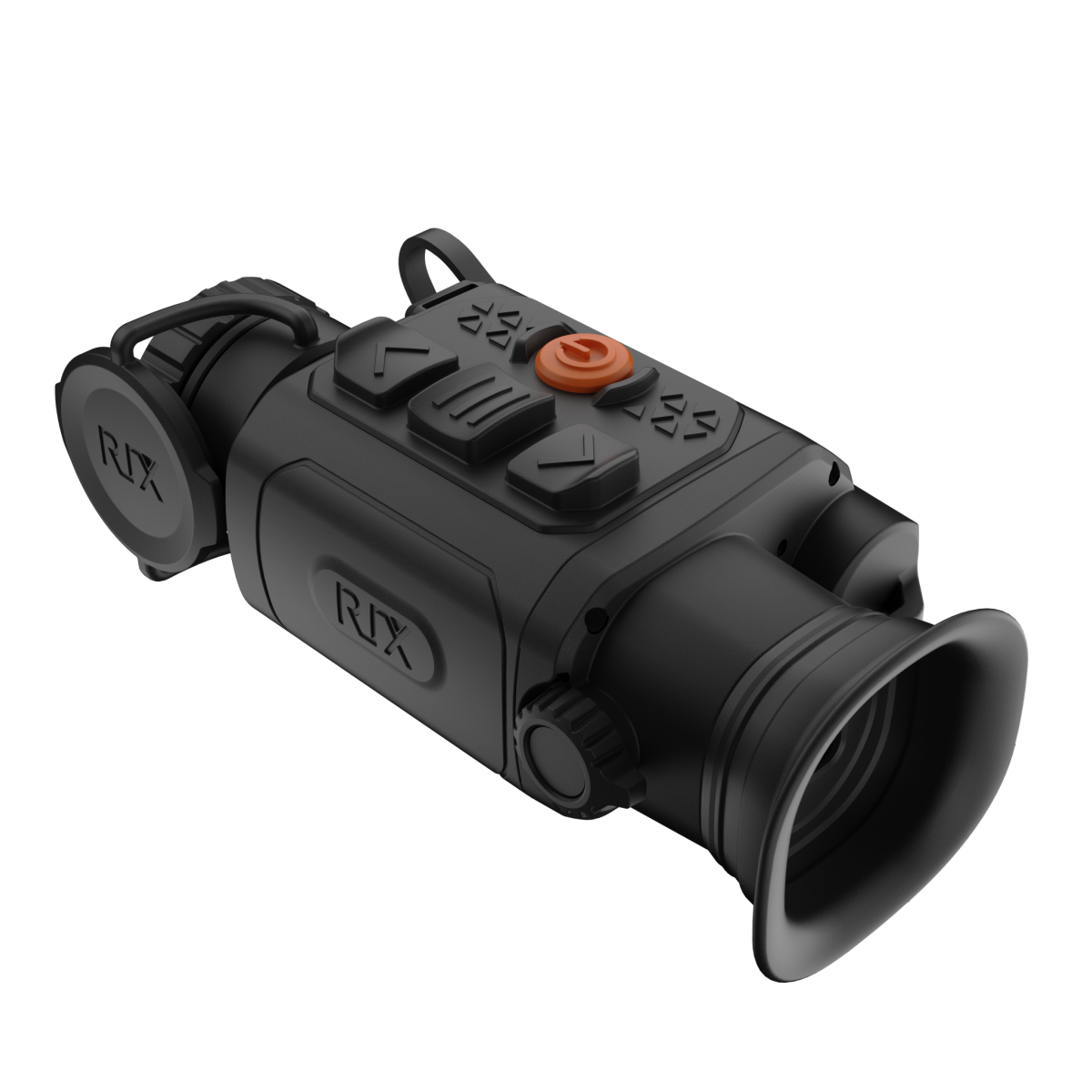

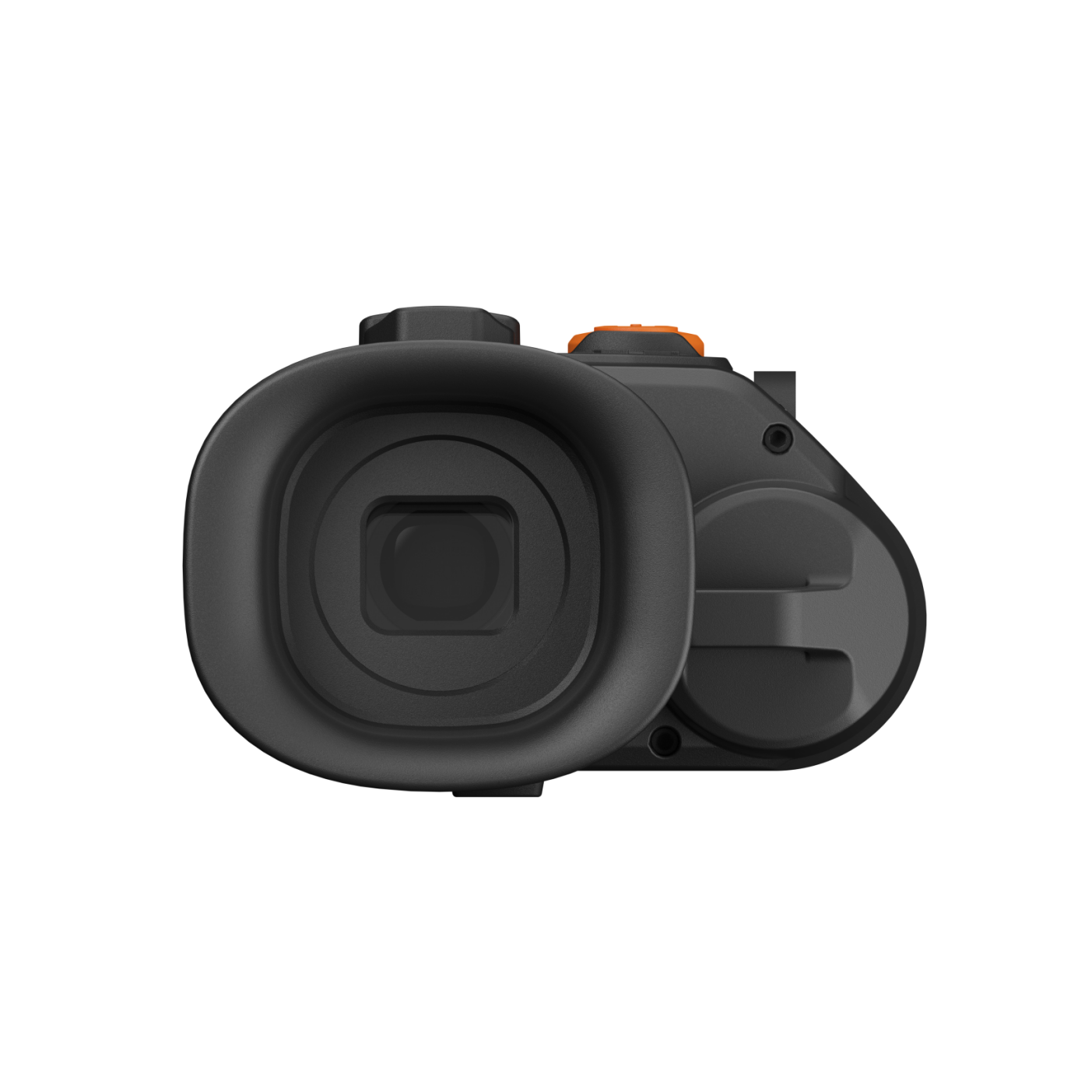

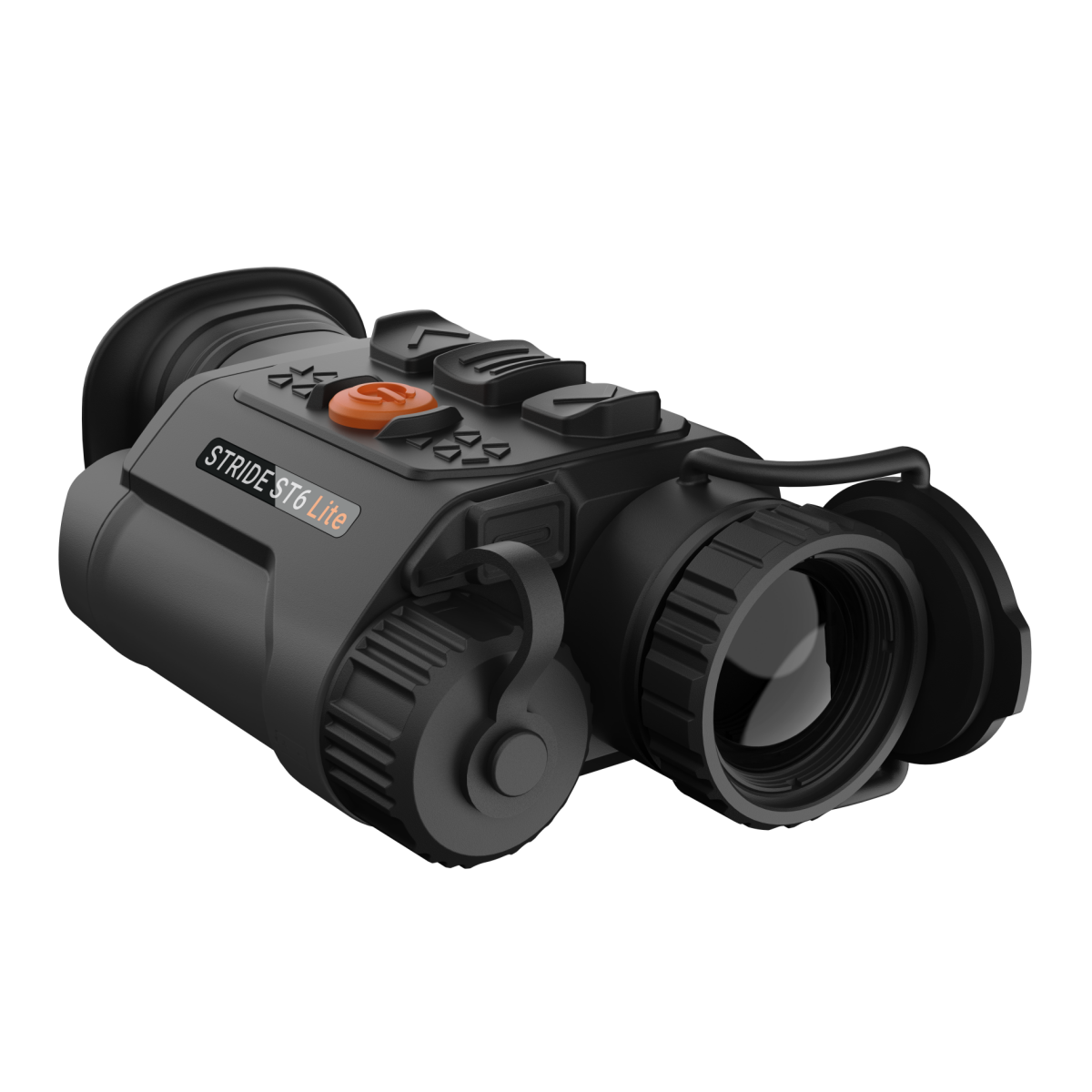

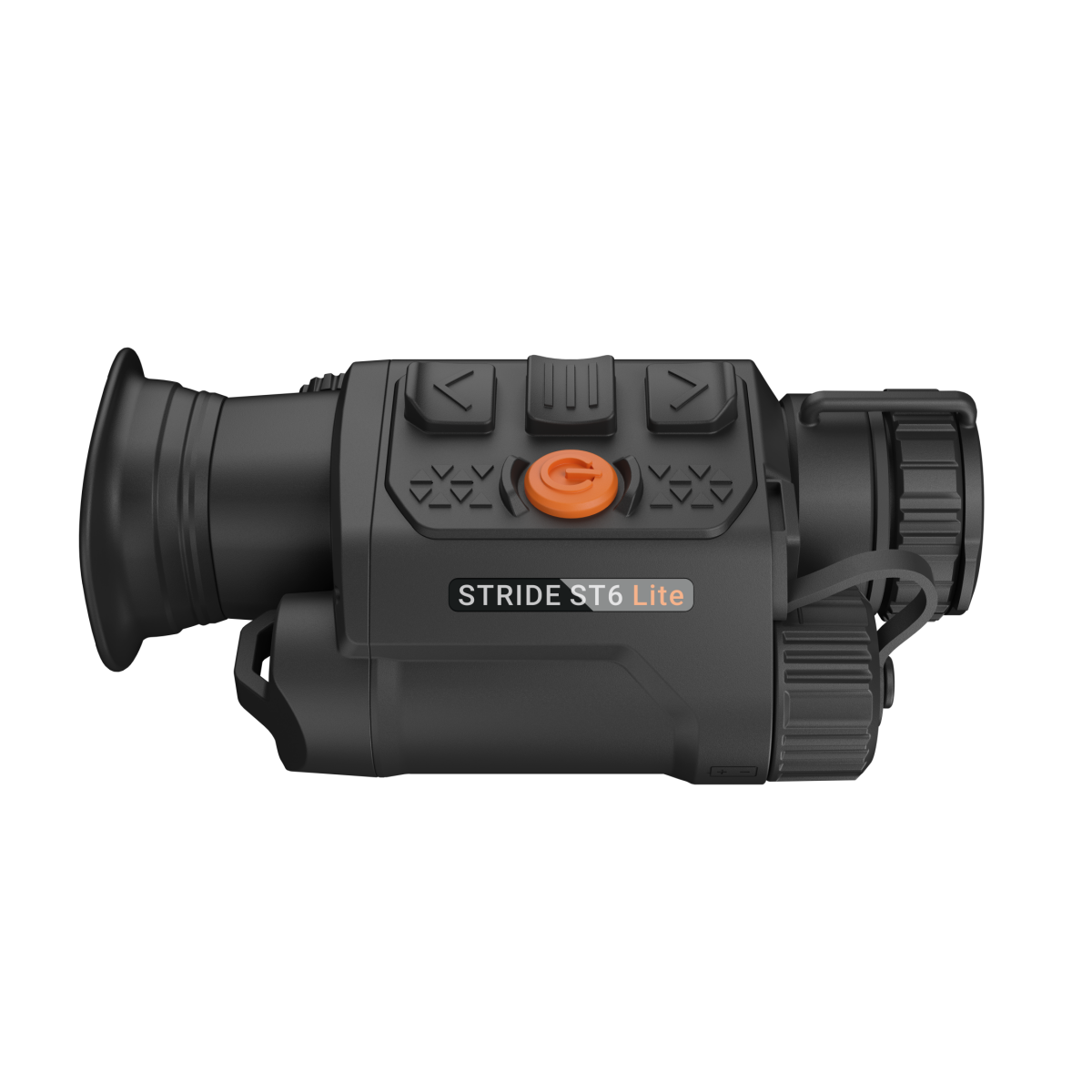

STRIDE ST6 Lite Thermal Imaging Monocular
Ultra-lightweight thermal monocular, durable, versatile, and easy to mount.
CHOOSE A MODEL
Product highlights
Sensor Resolution
Objective Lens
Magnification
Display Resolution
NETD, mK
Weight
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
WHY CHOOSE STRIDE ST6 LITE
STRIDE ST6 LITE
Featuring a powerful 640×512 @12μm thermal sensor, Its compact, lightweight design supports true multi-use scenarios, from handheld to head-mounted operation. With a wide 17.5°×13.1° field of view, users can scan larger areas with ease, while 1–6× magnification ensures flexible observation and precise target identification.

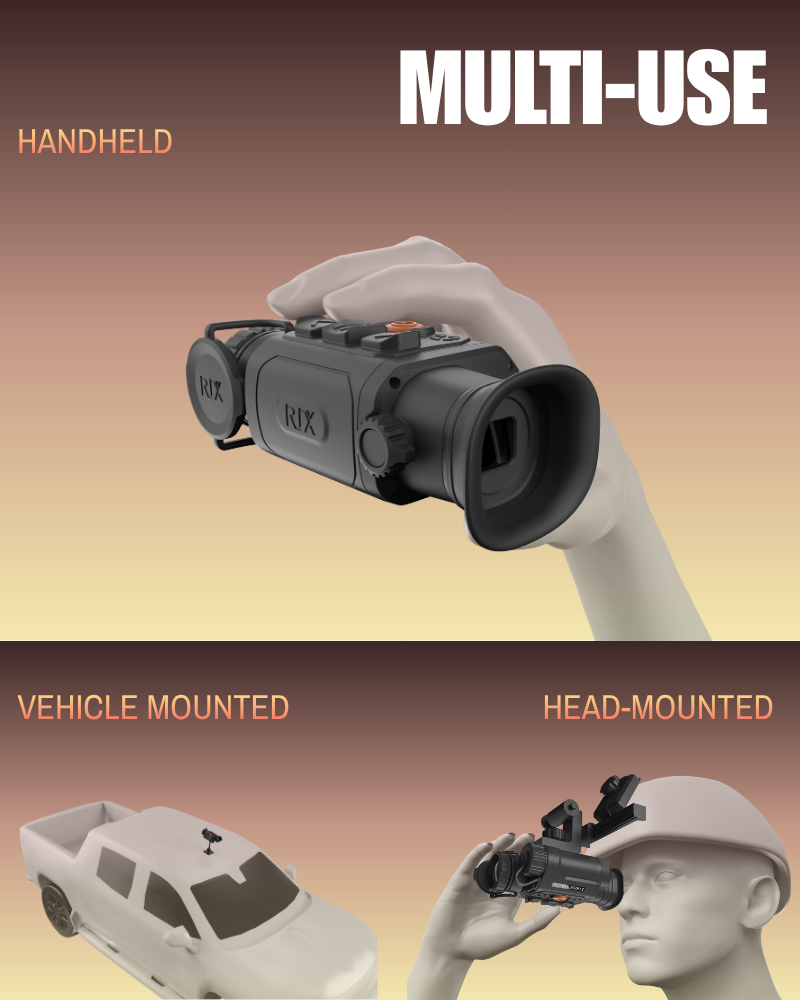

MULTI-USE
MAXIMUM FLEXIBILITY

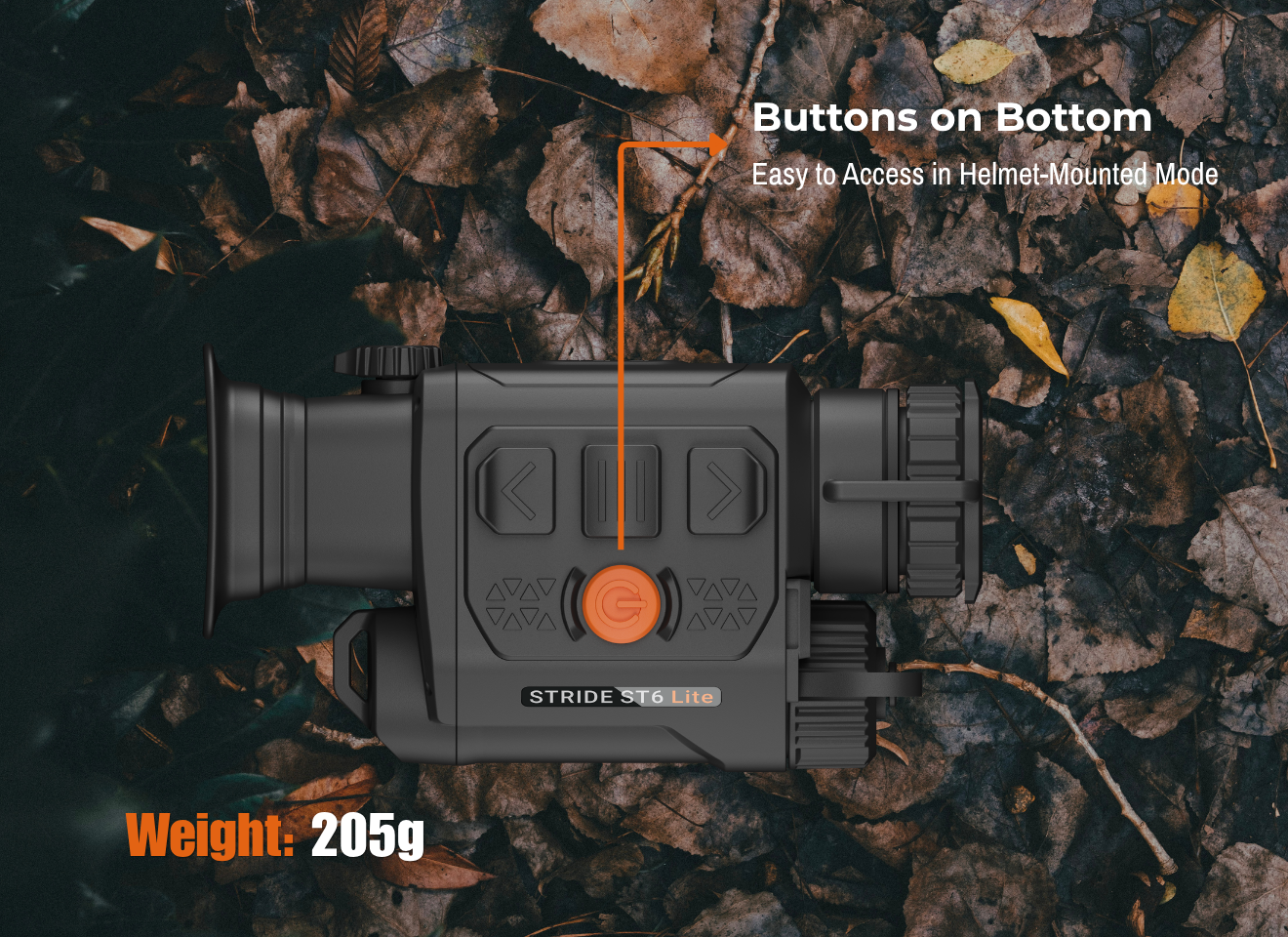

Lightweight, Effortless To Carry
Experience effortless portability with the STRIDE Lite. Its ultra-lightweight design lets you carry it for hours, making long observation sessions a breeze.
Drive With Thermal Vision
Experience clear thermal imaging on the move. Perfect for patrol, search, or night exploration — safety and awareness redefined.
SHARPER SIGHT
SUPERIOR DETAIL
Ultra-Clear Thermal Imaging
Equipped with a 640×512 resolution sensor at 12μm, the STRIDE ST6 Lite delivers exceptional clarity and precision in thermal imagery, even in challenging conditions.
Wide-Angle Vision For Clarity
Experience unparalleled clarity with a 17.5°×13.1° FOV, covering more area for better thermal detection.
VERSATILE VIEWING OPTIONS

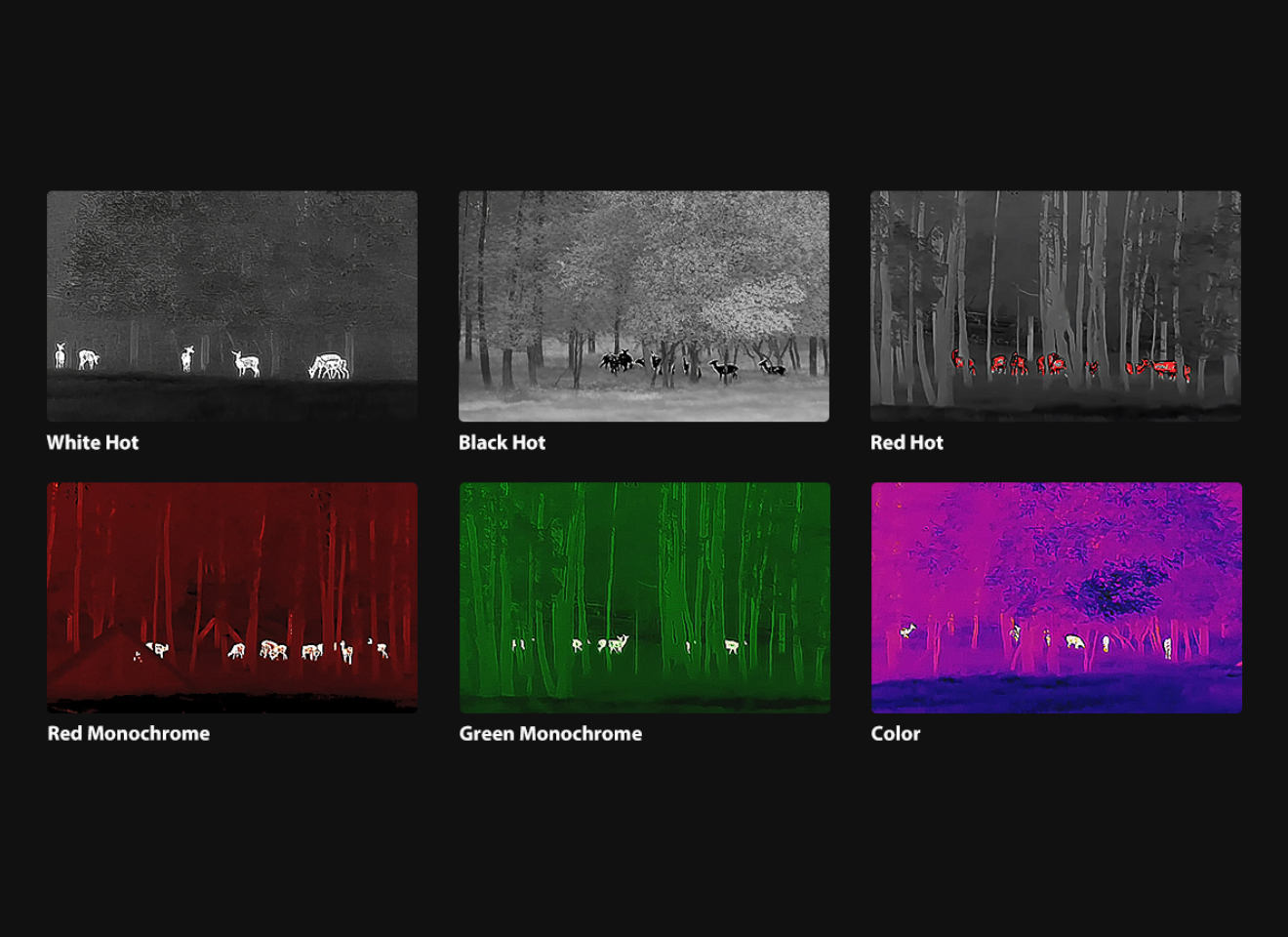

Six Palettes. Every Environment.
Featuring 6 color palettes, the STRIDE Lite adapts easily to different lighting and environments. The eye-care options also help reduce fatigue for more comfortable long-term observation.

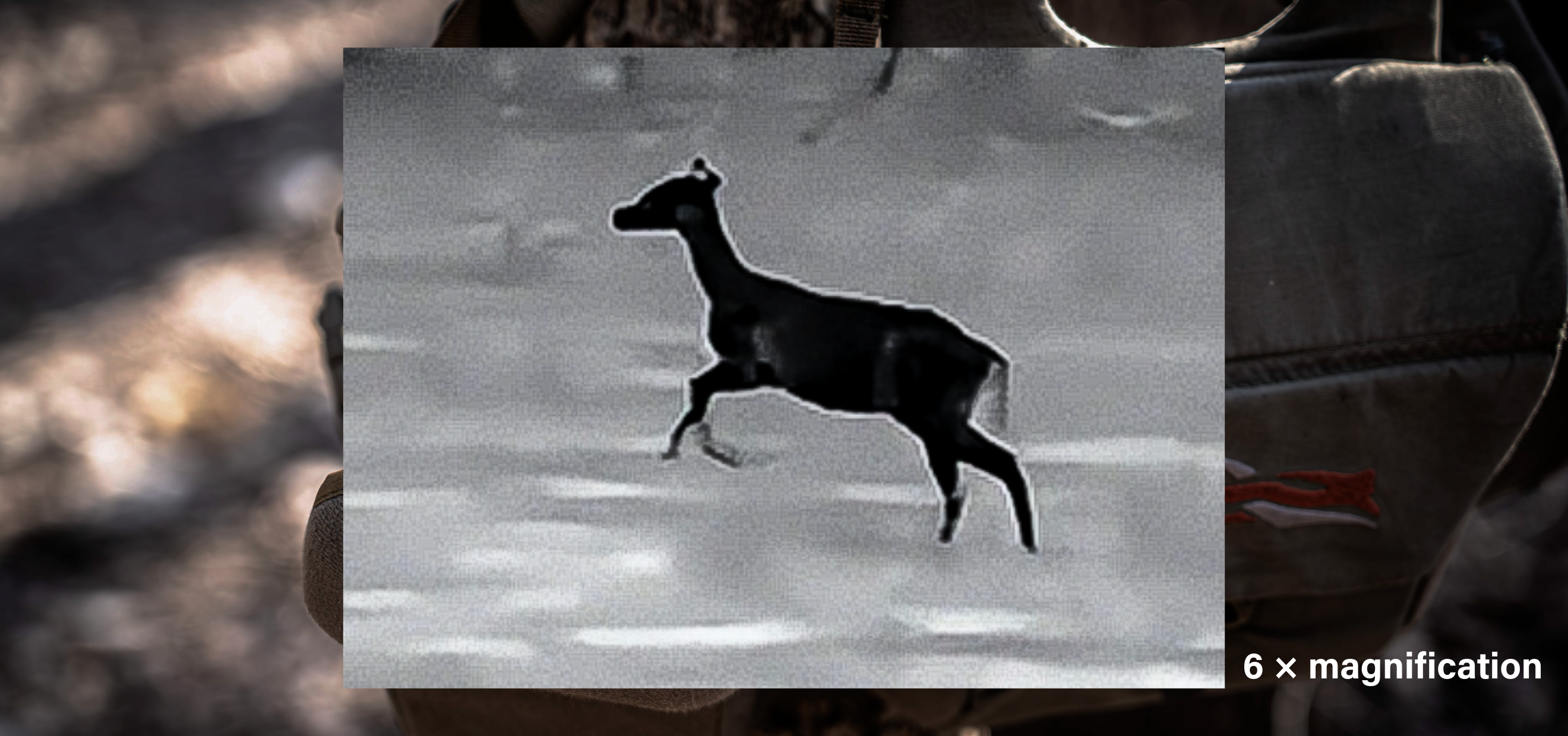

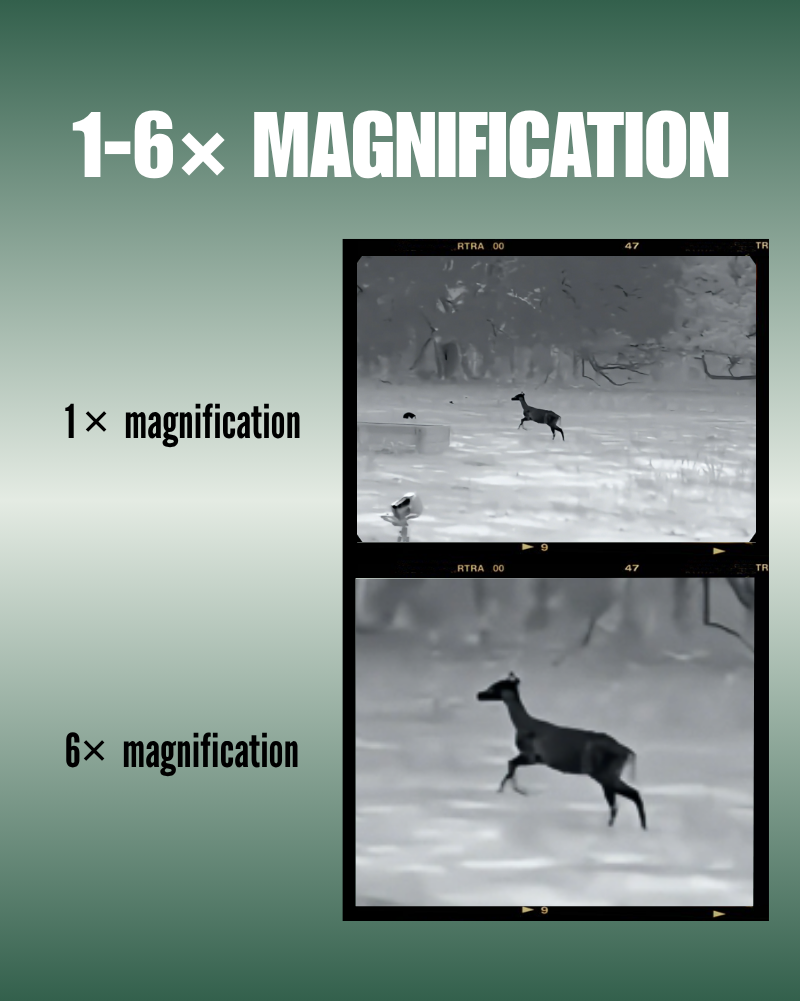

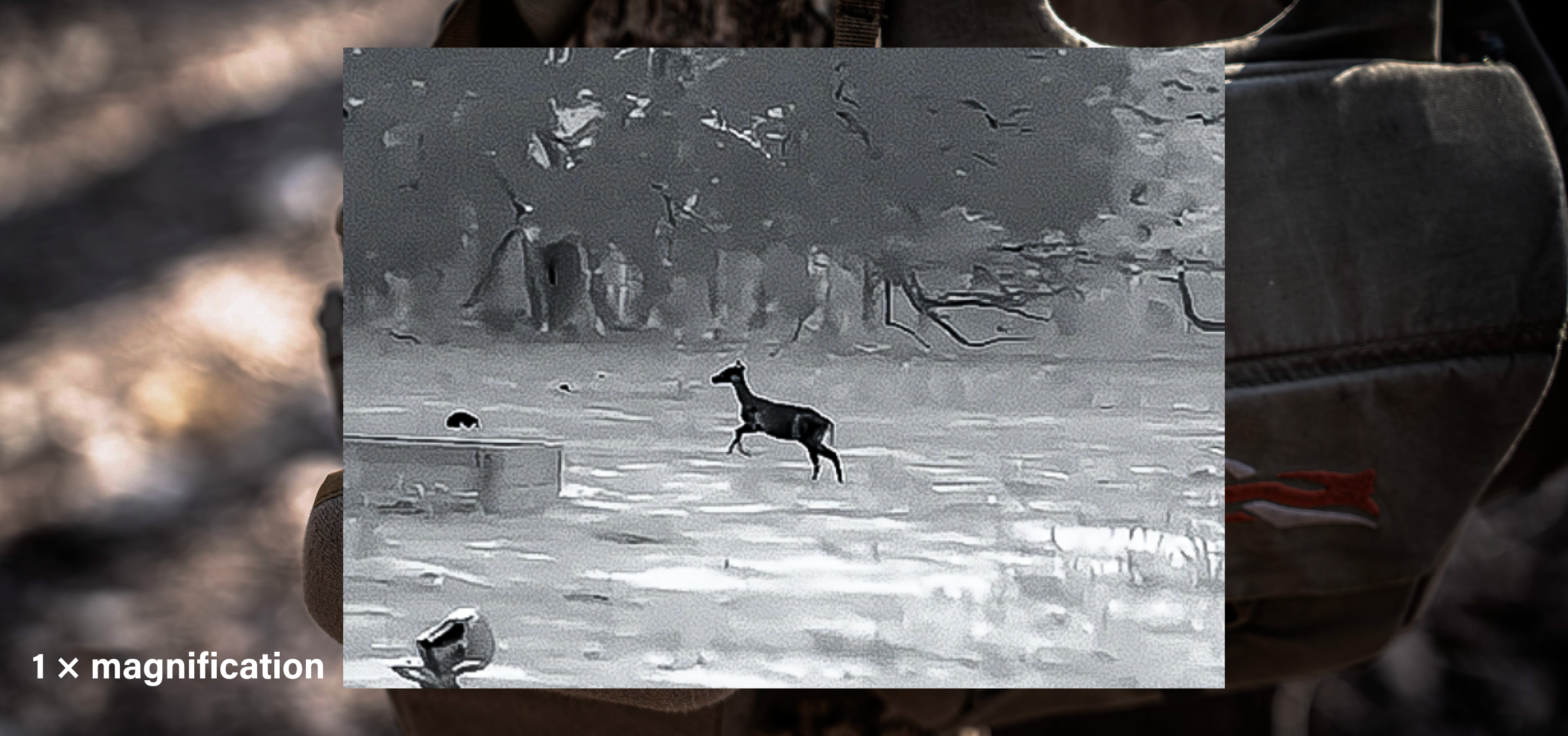

Details At Any Distance
With adjustable1-6×magnification, STRIDE Lite ensures clear views for both close-up inspections and long-range tracking, making it perfect for any mission.
Maximum Convenience, Anywhere

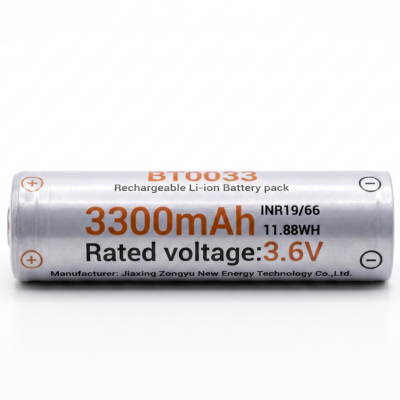

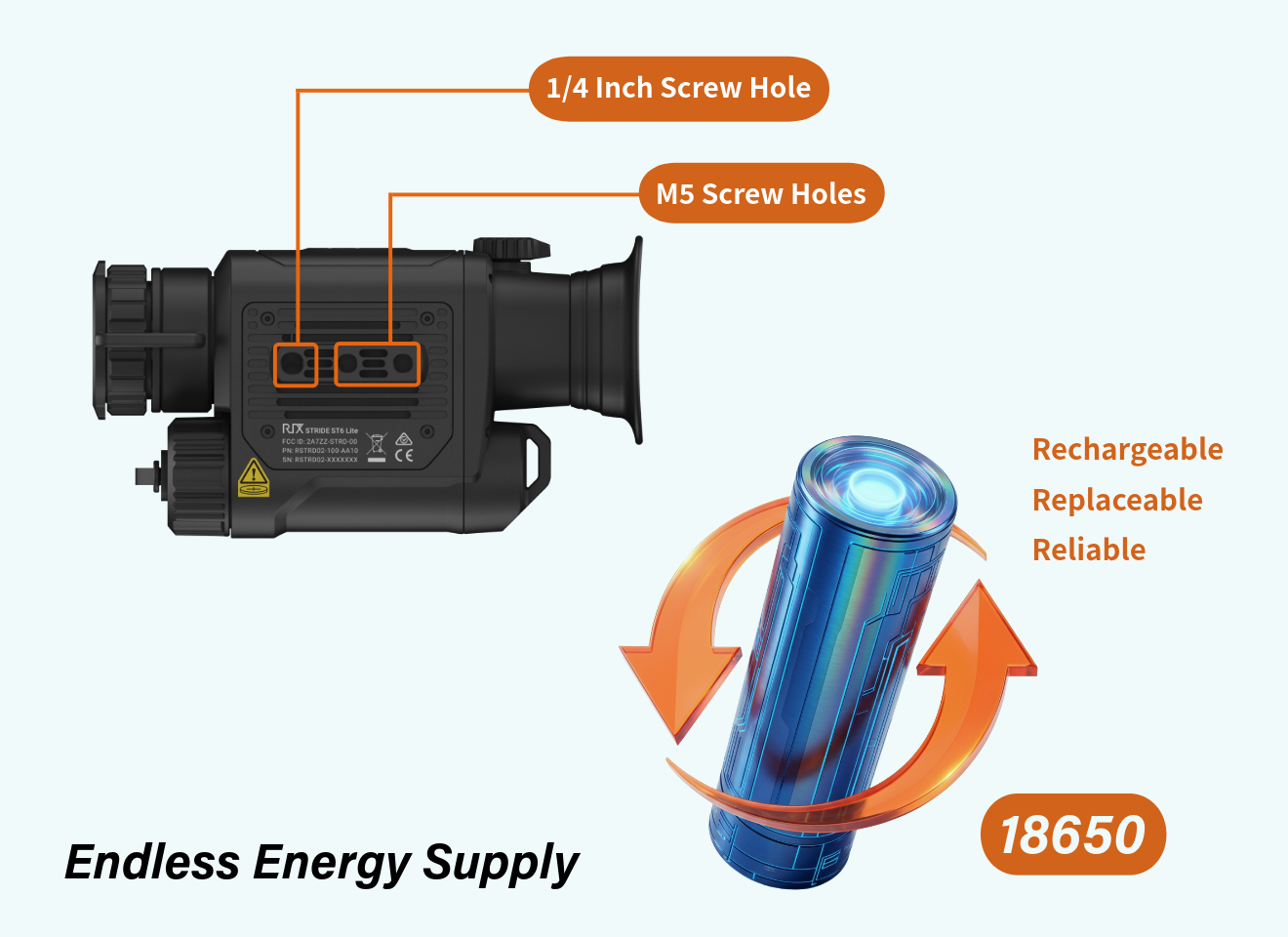

Powered by a rechargeable 18650 battery for long-lasting use, with screw mounts compatible with helmets and vehicles for ultimate flexibility.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
640×512
Pixel Pitch
12μm
NETD
<20 mK
Frame Rate
50 Hz
Optical Specs
Objective Lens
25mm, F1.0
Base Magnification
1×
Field of View(H×V), degrees/m@100m
17.5°×13.1°/33.6×25.2m
Digital Zoom
1~ 6×
Eye Relief
20mm
Diopter Adjustment
-5D to +5D
Detection Range
1300m
Display Specs
Type
OLED
Resolution, pixels
1024×768
Laser Rangefinding
Measurement Range
/
Measurement Accuracy
/
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
205 g
Dimensions
129×71×47 mm
Connections and Compatibilities
Battery Type
18650 (70mm length)
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type-C USB)
Included in the Box
STRIDE ST6 LITE

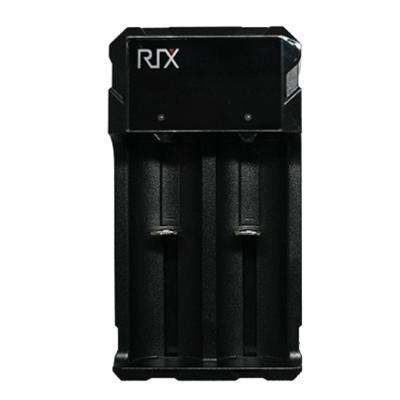

Battery Charger

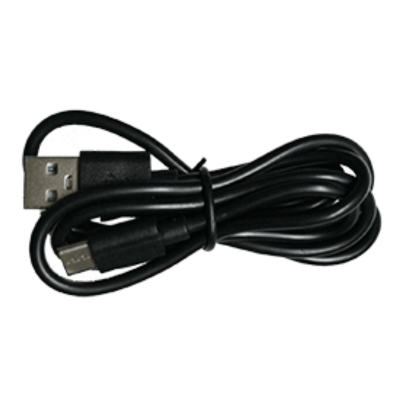

USB Type C Cable
18650 Battery × 1 (70mm length)

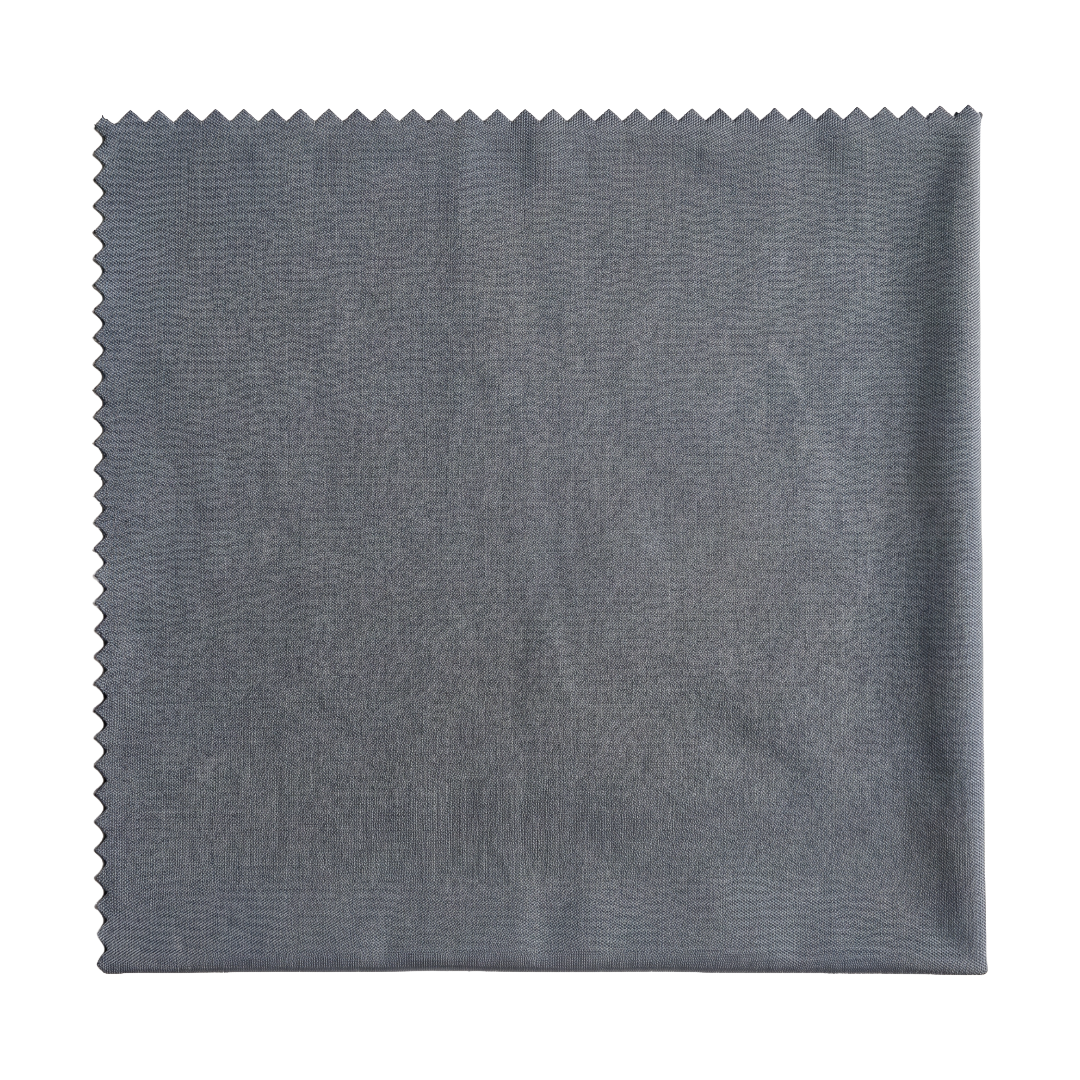

Lens Cloth

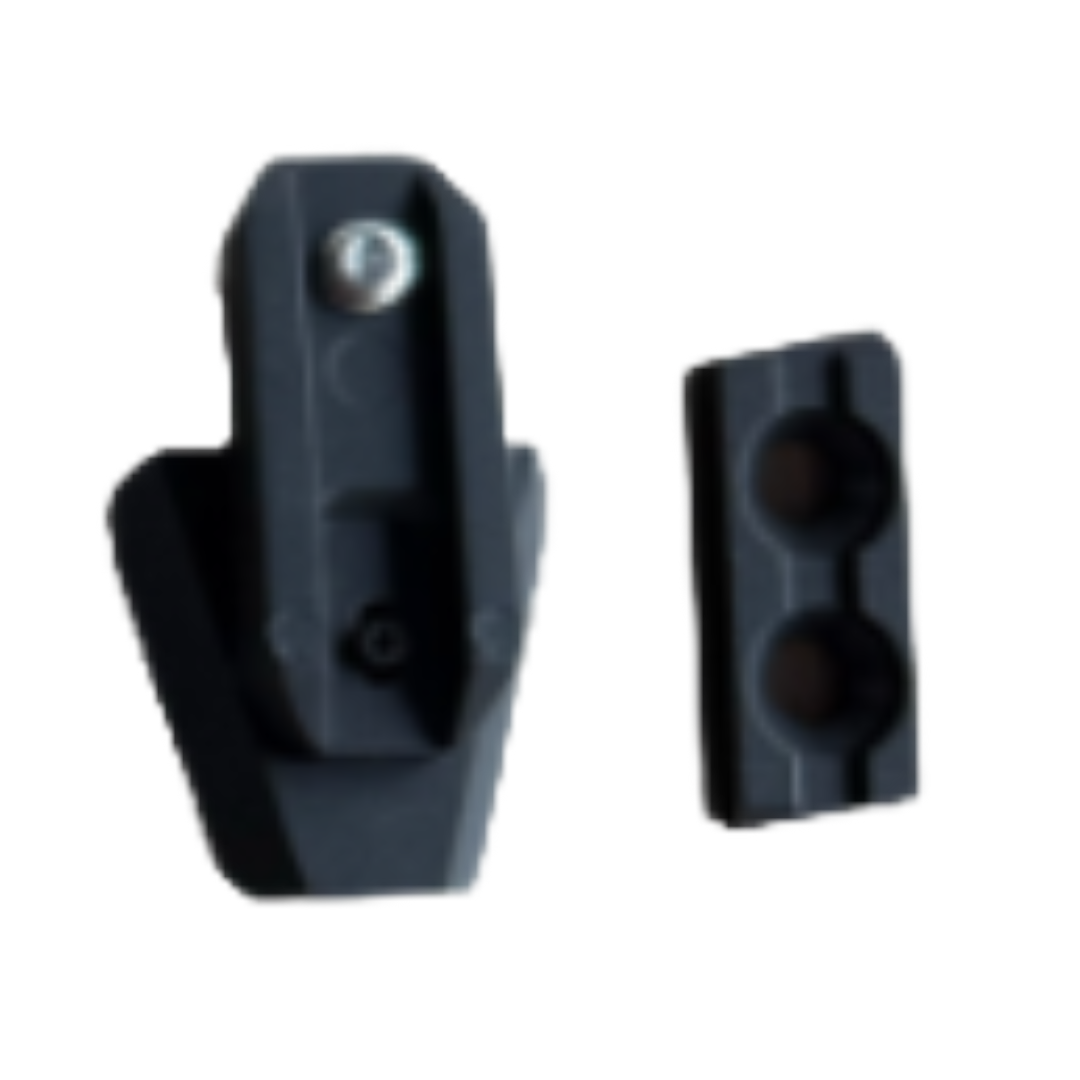

Adapter Kit × 2
Downloads
STRIDE User Manual
